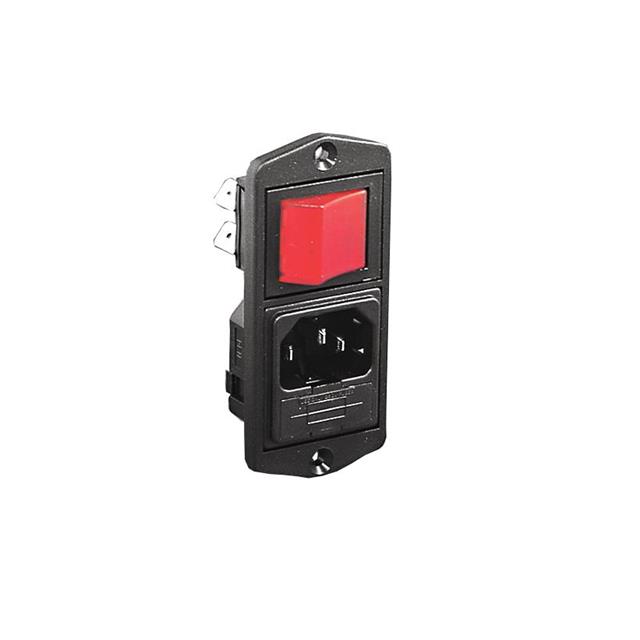

BVA15/Z0000/12

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	BVA15/Z0000/12

Accomodates a Fuse	True
Approval Agency	IMQ, UL, ENEC, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	33 mm
Panel Cutout Dimensions [y]	66.3 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Switch Features	Fuse Holder, Drawer	Approval Agency	Connector Style	Connector Type	Material Flammability Rating	Mounting Type	Voltage Rating - Appliance Inlet	Accomodates a Fuse	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Termination	Termination	Filter Type
BULGIN LIMITED BVA15/Z0000/12	10 A	Switch On-Off	Fuse Holder Twin Fused	CSA ENEC IMQ UL	IEC 320-C14	Receptacle Male Blades - Module	UL94 V-0	Flange Panel Mount	250 VAC		33 mm	66.3 mm	0.25 in	6.3 mm	Quick Connect	Unfiltered - Commercial
BULGIN LIMITED BVA15/Z0000/02	10 A	Switch On-Off	Fuse Holder Twin Fused		IEC 320-C14	Receptacle Male Blades - Module	UL94 V-0	Flange Panel Mount	250 VAC		33 mm	53.2 mm	0.25 in	6.3 mm	Quick Connect	Unfiltered - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	180	$ 19.46

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
