000-47025

Active

Amphenol RF

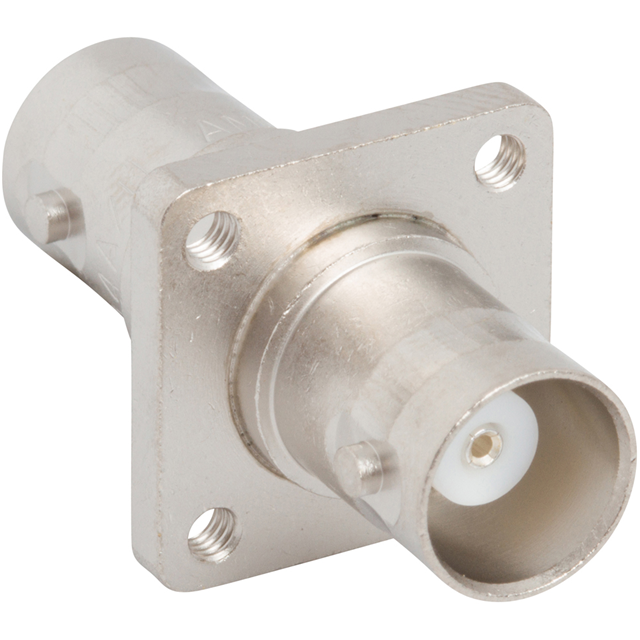

UG-414A/U BNC JACK TO BNC JACK ADAPTER 50 OHM STRAIGHT 4-HOLE FLANGE

Search across all available documentation for this part.

Active

Amphenol RF

UG-414A/U BNC JACK TO BNC JACK ADAPTER 50 OHM STRAIGHT 4-HOLE FLANGE

Technical Specifications

Parameters and characteristics for this part

Specification	000-47025

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Style	Straight

Part	Frequency - Max [Max]	Mounting Feature	Convert To (Adapter End)	Center Contact Plating	Fastening Type	Style	Adapter Series	Center Gender	Conversion Type	Impedance	Mating Cycles	Convert From (Adapter End)	Body Material	Dielectric Material	Center Contact Material	Adapter Type	Body Finish	Features	Connector Type	Contact Finish	Contact Material	Connector Style	Mounting Type
Amphenol RF 000-47025	4 GHz	Flange	BNC Jack Female Socket	Silver	Bayonet Lock	Straight	BNC to BNC	Female to Female	Same Series	50 Ohms	500	BNC Jack Female Socket	Brass	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Jack to Jack	Nickel
Amphenol RF 000-4700-51										51 Ohms			Brass				Nickel	Chain	Male Pin Plug	Silver	Brass	BNC	Cap Free Hanging

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
