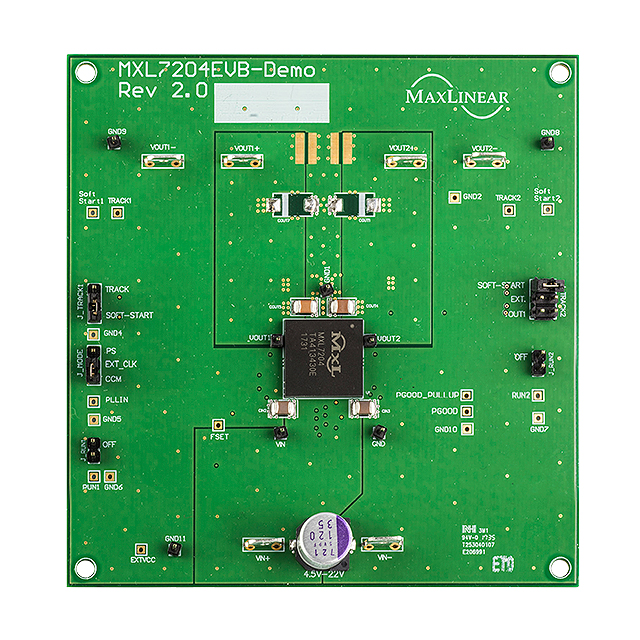

MXL7204EVB
ObsoleteMaxLinear, Inc.
EVAL BRD FOR MXL7204
Deep-Dive with AI
Search across all available documentation for this part.
MXL7204EVB
ObsoleteMaxLinear, Inc.
EVAL BRD FOR MXL7204
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MXL7204EVB |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 4 A |
| Current - Output | 4 A |
| Frequency - Switching | 780 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 2 |
| Outputs and Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MXL7204 |
| Voltage - Input [Max] | 20 V |
| Voltage - Input [Min] | 4.5 V |
| Voltage - Output | 3.3 V, 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MXL7204 Series
MXL7204 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
No documents available
