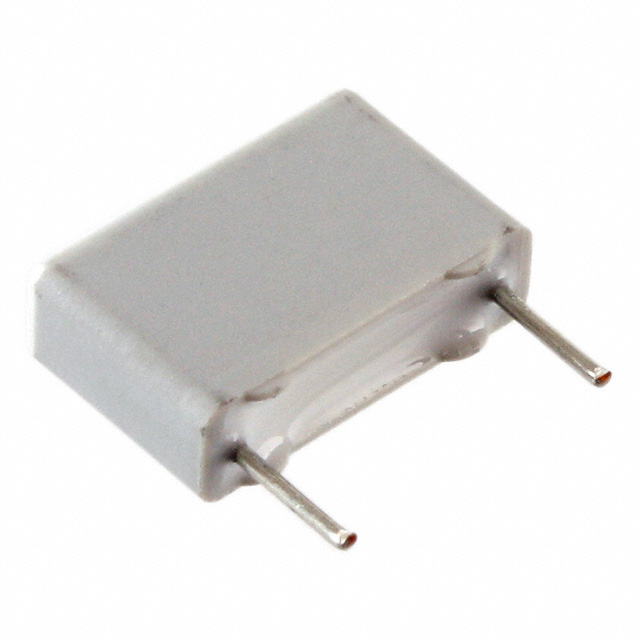

SMR10224J63A01L4BULK

Active

KEMET

CAP FILM 0.22UF 5% 63VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.22UF 5% 63VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SMR10224J63A01L4BULK

Applications	General Purpose
Capacitance	0.22 µF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized
Features	High Temperature
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	4 mm
Size / Dimension [y]	0.157 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 VDC

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Dielectric Material	Mounting Type	Lead Spacing	Lead Spacing	Termination	Package / Case	Features	Tolerance	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Applications
KEMET SMR10224J63A01L4BULK	0.354 in	9 mm	40 V	4 mm	13 mm	0.157 in	0.512 in	0.22 µF	Polyphenylene Sulfide (PPS) Metallized	Through Hole	0.394 in	10 mm	PC Pins	Radial	High Temperature	5 %	63 VDC	-55 °C	150 °C	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.22 µF Film Capacitor 40V 63V Polyphenylene Sulfide (PPS), Metallized Radial
