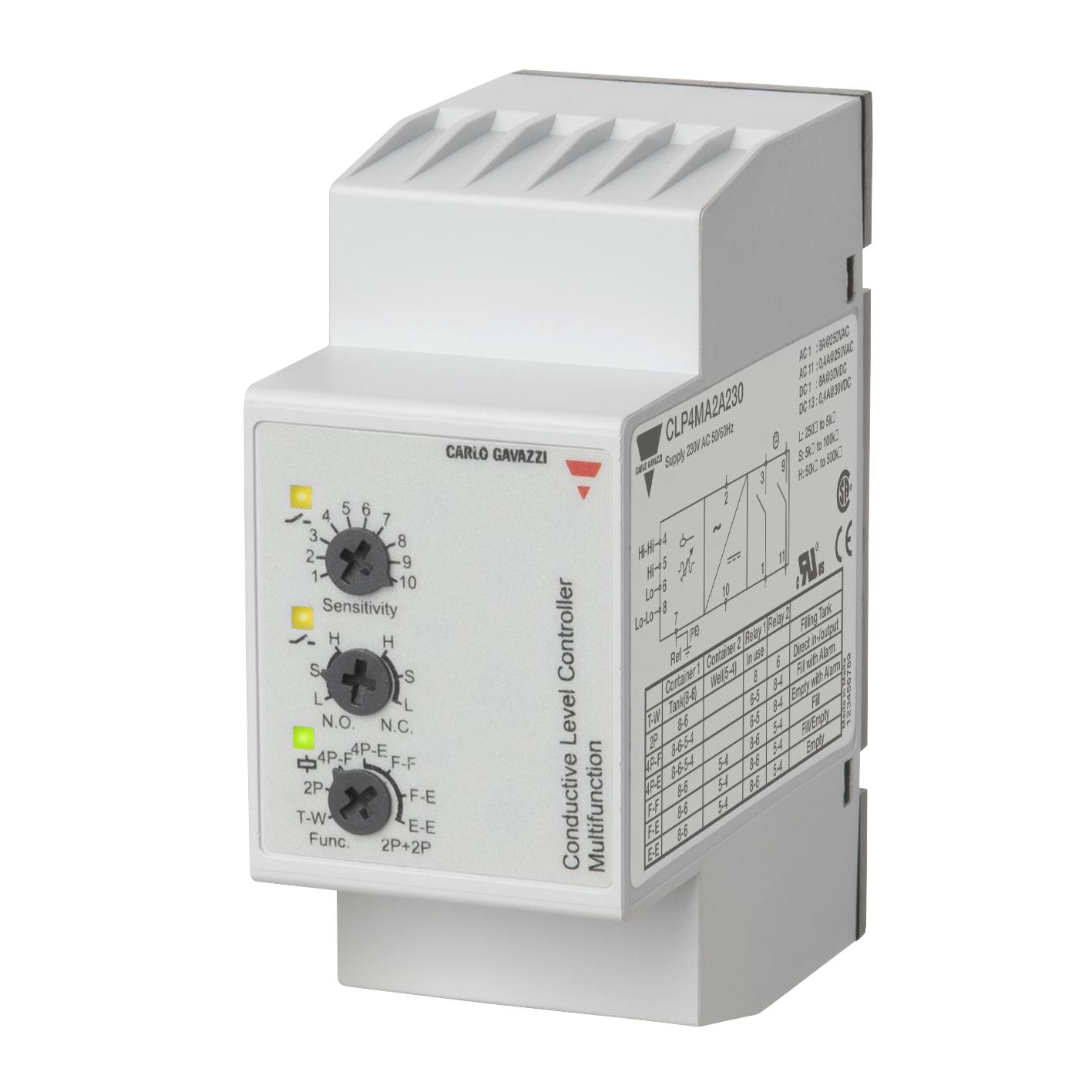

CLP4MA2AM24
ActiveCARLO GAVAZZI
COND LEVEL 4+1 MULTI FUNC PLG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLP4MA2AM24
ActiveCARLO GAVAZZI
COND LEVEL 4+1 MULTI FUNC PLG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLP4MA2AM24 |
|---|---|
| Contact Form | SPST-NO (1 Form A) x 2 |
| Contact Rating @ Voltage | 250 VAC, 8 A |
| Features | Adjustable Sensitivity |
| Mounting Type | Socketable |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Sensitivity [Max] | 500 kOhm |
| Sensitivity [Min] | 0.25 kOhm |
| Termination Style | Plug In, 11 Pin (Octal) |
| Type | High/Low Level |
| Voltage - Supply | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 372.40 | |
| 5 | $ 353.78 | |||
| 10 | $ 342.61 | |||
| 25 | $ 331.44 | |||
Description
General part information
CLP4M Series
Liquid Level Controller High/Low Level SPST-NO (1 Form A) x 2 24VAC/DC Socketable
Documents
Technical documentation and resources
