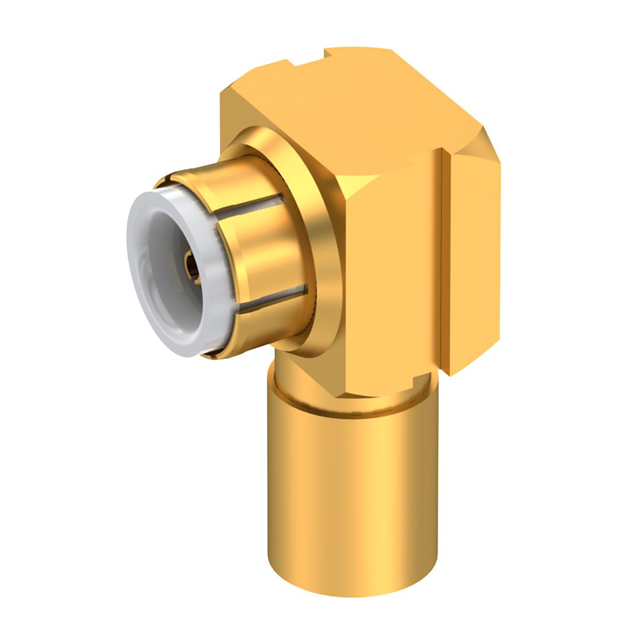

R223162000

Active

Radiall USA, Inc.

MMBX / RIGHT ANGLE PLUG SOLDER T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMBX / RIGHT ANGLE PLUG SOLDER T

Technical Specifications

Parameters and characteristics for this part

Specification	R223162000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMBX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Fastening Type	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Body Finish	Connector Type	Contact Termination	Cable Group	Frequency - Max [Max]	Voltage Rating	Mounting Type	Center Contact Plating	Number of Ports	Dielectric Material	Connector Style	Center Contact Material	Body Material	Housing Color
Radiall USA, Inc. R223162000	Snap-On	Solder	155 °C	-55 °C	50 Ohms	Gold	Male Pin Plug	Solder	RG-405 (.085" Semi Rigid)	12.4 GHz	250 VDC	Free Hanging (In-Line) Right Angle	Gold	1	Polytetrafluoroethylene (PTFE)	MMBX	Beryllium Copper	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMBX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
