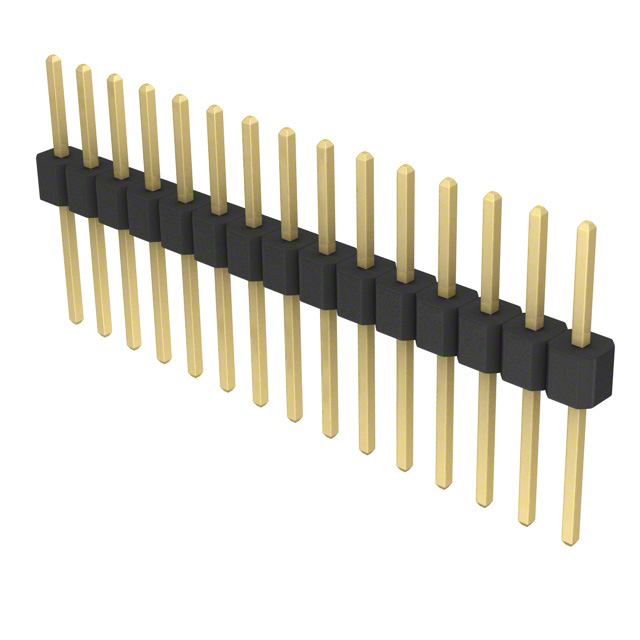

PRPC015SACN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 15POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRPC015SACN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 15POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC015SACN-RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.32 in |
| Contact Length - Post [x] | 8.13 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 16.47 mm |
| Overall Contact Length | 0.648 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC015 Series
| Part | Insulation Height [z] | Insulation Height [z] | Fastening Type | Contact Finish - Post | Contact Material | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Contact Type | Termination | Style | Number of Positions | Pitch - Mating | Pitch - Mating | Shrouding | Contact Length - Mating [x] | Contact Length - Mating | Mounting Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Shape | Connector Type | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Number of Rows | Contact Finish Thickness - Mating | Insulation Material | Contact Finish - Mating | Contact Length - Mating [x] | Overall Contact Length | Contact Length - Post | Contact Length - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 0.098 in | 2.5 mm | Push-Pull | Gold | Brass | 16.47 mm | 0.648 in | All | Male Pin | Solder | Board to Board Cable | 15 | 0.1 in | 2.54 mm | Unshrouded | 0.23 in | 5.84 mm | Through Hole | UL94 V-0 | -40 °C | 105 ░C | Black | Square | Breakaway Header | 3 A | 0.32 in | 8.13 mm | Flash | 1 | Flash | Polybutylene Terephthalate (PBT) | Gold | ||||||
Sullins Connector Solutions | 0.098 in | 2.5 mm | Push-Pull | Gold | Brass | 0.537 " | All | Male Pin | Solder | Board to Board Cable | 15 | 0.1 in | 2.54 mm | Unshrouded | 0.318 " | Through Hole | UL94 V-0 | -40 °C | 105 ░C | Black | Square | Breakaway Header | 3 A | 0.12 in | 3.05 mm | Flash | 1 | Flash | Polybutylene Terephthalate (PBT) | Gold | 8.08 mm | 13.63 mm | ||||||
Sullins Connector Solutions | 0.098 in | 2.5 mm | Push-Pull | Gold | Brass | All | Male Pin | Solder | Board to Board Cable | 15 | 0.1 in | 2.54 mm | Unshrouded | 0.23 in | 5.84 mm | Through Hole Right Angle | UL94 V-0 | -40 °C | 105 ░C | Black | Square | Breakaway Header | 3 A | 0.32 in | 8.13 mm | Flash | 1 | Flash | Polybutylene Terephthalate (PBT) | Gold | ||||||||
Sullins Connector Solutions | 0.098 in | 2.5 mm | Push-Pull | Gold | Brass | All | Male Pin | Solder | Board to Board Cable | 15 | 0.1 in | 2.54 mm | Unshrouded | 0.23 in | 5.84 mm | Through Hole Right Angle | UL94 V-0 | -40 °C | 105 ░C | Black | Square | Breakaway Header | 3 A | Flash | 1 | Flash | Polybutylene Terephthalate (PBT) | Gold | 0.22 in | 5.58 mm | ||||||||
Sullins Connector Solutions | 0.098 in | 2.5 mm | Push-Pull | Gold | Brass | 11.39 mm | 0.448 in | All | Male Pin | Solder | Board to Board Cable | 15 | 0.1 in | 2.54 mm | Unshrouded | 0.23 in | 5.84 mm | Through Hole | UL94 V-0 | -40 °C | 105 ░C | Black | Square | Breakaway Header | 3 A | 0.12 in | 3.05 mm | Flash | 1 | Flash | Polybutylene Terephthalate (PBT) | Gold | ||||||
Sullins Connector Solutions | 0.098 in | 2.5 mm | Push-Pull | Gold | Brass | 0.537 " | All | Male Pin | Solder | Board to Board Cable | 30 | 0.1 in | 2.54 mm | Unshrouded | 0.318 " | Through Hole | UL94 V-0 | -40 °C | 105 ░C | Black | Square | Breakaway Header | 3 A | 0.12 in | 3.05 mm | Flash | 2 | Flash | Polybutylene Terephthalate (PBT) | Gold | 8.08 mm | 13.63 mm | 2.54 mm | 0.1 in |
