356-018-420-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-018-420-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-018-420-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-018 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Termination Rows | Number of Rows | Contact Material | Contact Type | Color | Gender | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Type | Material - Insulation | Pitch [x] | Pitch [x] | Contact Finish | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | ||
EDAC Inc. | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | Card Guides | |||
EDAC Inc. | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | Panel Mount Through Hole | |||
EDAC Inc. | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | Card Guides | Panel Mount Through Hole | ||
EDAC Inc. | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Tin | Card Guides | Panel Mount Through Hole | ||||
EDAC Inc. | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | ||||
EDAC Inc. | -40 °C | 105 ░C | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | Panel Mount Through Hole | |
EDAC Inc. | -40 °C | 105 ░C | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Tin | Panel Mount Through Hole | |||
EDAC Inc. | -40 °C | 105 ░C | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Tin | Panel Mount Through Hole | |||
EDAC Inc. | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 1 | 2 | Copper Alloy | Cantilever | Black | Female | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | 18 | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | 3.96 mm | Gold | Card Guides | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-018 Series

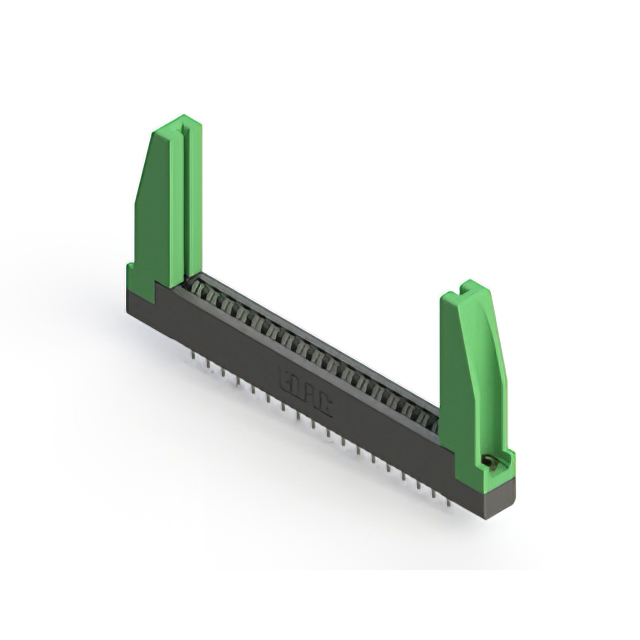

36 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
