132366
ActiveAmphenol RF

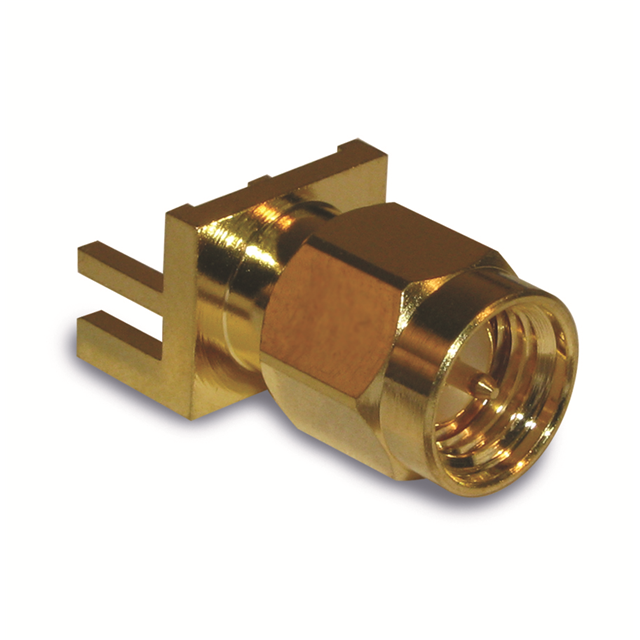

SMA END LAUNCH PLUG FOR 0.062 IN
Deep-Dive with AI
Search across all available documentation for this part.
132366
ActiveAmphenol RF
SMA END LAUNCH PLUG FOR 0.062 IN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 132366 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
1323 Series
| Part | Body Material | Body Finish | Color | Accessory Type | Connector Style | For Use With/Related Products | Includes | Contact Termination | Impedance | Frequency - Max [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shield Termination | Connector Type | Mating Cycles | Number of Ports | Cable Group | Cable Group | Center Contact Plating | Housing Color | Center Contact Material | Convert From (Adapter End) | Center Gender | Adapter Type | Convert To (Adapter End) | Style | Conversion Type | Adapter Series | Mounting Feature | Voltage Rating | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Brass | Gold | Gold | Cap (Cover) | RP-SMA | RP-SMA Jacks | |||||||||||||||||||||||||||
Amphenol RF | Brass | Gold | SMA | 1 Connector 1 End Cap | Solder | 50 Ohms | 18 GHz | Free Hanging (In-Line) Right Angle | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Male Pin Plug | 500 | 1 | 0.25 in | RG-401 | Gold | Gold | Brass | |||||||||||||
Amphenol RF | Brass | Gold | SMA | Solder | 50 Ohms | 18 GHz | Free Hanging (In-Line) | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | 500 | 1 | 0.25 in | RG-401 | Gold | Gold | Brass | ||||||||||||||
Amphenol RF | Brass | Gold | SMA | Solder | 50 Ohms | 18 GHz | Board Edge End Launch | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Male Pin Plug | 500 | 1 | Gold | Gold | Brass | ||||||||||||||||
Amphenol RF | Brass | Gold | SMA | Solder | 50 Ohms | 18 GHz | Board Edge End Launch | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Receptacle | 500 | 1 | Gold | Gold | Beryllium Copper | ||||||||||||||||
Amphenol RF | Brass | Gold | 50 Ohms | 18 GHz | Free Hanging (In-Line) Right Angle | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | SMA Plug Male Pin | Male to Male | Plug to Plug | Male Pin SMA Plug | Right Angle | Same Series | SMA to SMA | ||||||||||||||||
Amphenol RF | Brass | Gold | SMA | 1 Connector 1 Lockwasher 1 Nut | Solder | 50 Ohms | 18 GHz | Board Edge End Launch Panel Mount | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | 500 | 1 | Gold | Gold | Beryllium Copper | Bulkhead - Front Side Nut | ||||||||||||||
Amphenol RF | Brass | Gold | SMA | Solder | 50 Ohms | 18 GHz | Panel Mount Right Angle | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | 500 | 1 | Gold | Gold | Beryllium Copper | Flange | |||||||||||||||
Amphenol RF | Brass | Gold | SMA | Solder | 50 Ohms | 18 GHz | Free Hanging (In-Line) | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Crimp | Male Pin Plug | 500 | 1 | Gold | Brass | 500 V | ||||||||||||||||
Amphenol RF | Brass | Nickel | SMA | 1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Lockwasher 1 Nut 1 Sleeve 7 pcs | Solder | Polytetrafluoroethylene (PTFE) | Crimp | Female Socket Jack | 500 | 1 | 1.13mm Coaxial Cable | Gold | Silver | Beryllium Copper Brass | Bulkhead - Rear Side Nut | IP67 - Dust Tight Waterproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.36 | |
| 10 | $ 10.22 | |||
| 25 | $ 9.63 | |||
| 50 | $ 9.39 | |||
| 100 | $ 9.14 | |||
| 300 | $ 8.15 | |||
| 500 | $ 7.66 | |||
| 1000 | $ 6.77 | |||
Description
General part information
1323 Series
SMA Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Solder
