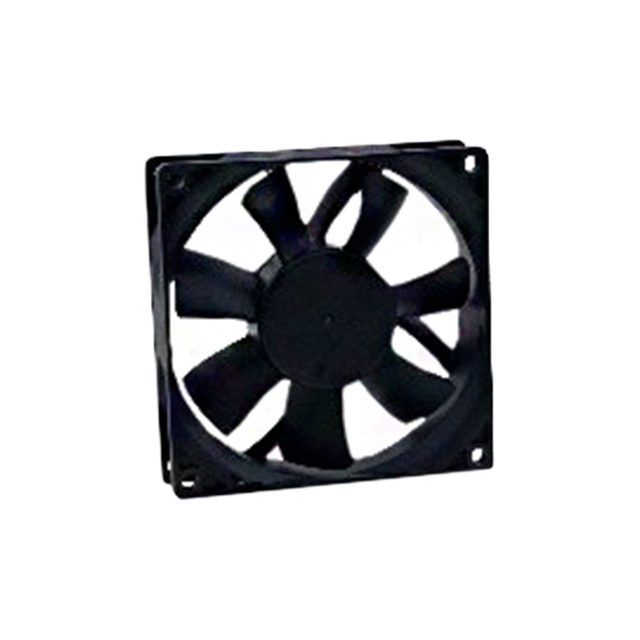

MR9225M24B1+6-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet

MR9225M24B1+6-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MR9225M24B1+6-FSR

Air Flow	2.27 m³/min
Air Flow	81 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.19 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Material - Blade	Plastic
Material - Frame	Plastic
Noise	45.1 dB(A)
RPM	3600 RPM
Static Pressure	0.33 in H2O
Static Pressure	82.2 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	119.75 g
Weight	0.264 lb
Width [y]	25 mm

MR9225 Series

Part	Material - Blade	Termination	Voltage - Rated	RPM	Width [y]	Approval Agency	Bearing Type	Material - Frame	Static Pressure	Static Pressure	Noise	Air Flow	Air Flow	Features	Fan Type	Current Rating (Amps)	Weight	Weight	Air Flow
Mechatronics Bearing Group MR9225M24B2-FSR	Plastic	3 Wire Leads	24 VDC	3600 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.33 in H2O	82.2 Pa	45.1 dB(A)	2.27 m³/min	81 CFM	Auto Restart Locked Rotor Sensor	Tubeaxial	0.19 A	119.75 g	0.264 lb
Mechatronics Bearing Group MR9225M24B1+6-FSR	Plastic	4 Wire Leads	24 VDC	3600 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.33 in H2O	82.2 Pa	45.1 dB(A)	2.27 m³/min	81 CFM	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	0.19 A	119.75 g	0.264 lb
Mechatronics Bearing Group MR9225E24B1+6-FSR	Plastic	4 Wire Leads	24 VDC	4400 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.49 in H2O	122.1 Pa	50.8 dB(A)	2.77 mł/min	99 CFM	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	0.31 A	119.75 g	0.264 lb
Mechatronics Bearing Group MR9225X24B2-FSR	Plastic	3 Wire Leads	24 VDC	4800 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.58 in H2O	144.5 Pa	53 dB	3 m³/min	107 CFM	Auto Restart Locked Rotor Sensor	Tubeaxial	0.42 A	119.75 g	0.264 lb
Mechatronics Bearing Group MR9225X24B1-FSR	Plastic	3 Wire Leads	24 VDC	4800 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.58 in H2O	144.5 Pa	53 dB	107 CFM		Auto Restart Speed Sensor (Tach)	Tubeaxial	0.42 A	119.75 g	0.264 lb	3 mł/min
Mechatronics Bearing Group MR9225L24B-FSR	Plastic	2 Wire Leads	24 VDC	3000 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.23 in H2O	57.3 Pa	40.9 dB(A)	1.9 m³/min	68 CFM	Auto Restart	Tubeaxial	110 mA	119.75 g	0.264 lb
Mechatronics Bearing Group MR9225L24B1+6-FSR	Plastic	4 Wire Leads	24 VDC	3000 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.23 in H2O	57.3 Pa	40.9 dB(A)	1.9 m³/min	68 CFM	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	110 mA	119.75 g	0.264 lb
Mechatronics Bearing Group MR9225H24B1+6-FSR	Plastic	4 Wire Leads	24 VDC	4000 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.4 in H2O	99.6 Pa	48 dB	2.52 mł/min	90 CFM	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	0.25 A	119.75 g	0.264 lb
Mechatronics Bearing Group MR9225L24B1-FSR	Plastic	3 Wire Leads	24 VDC	3000 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.23 in H2O	57.3 Pa	40.9 dB(A)	1.9 m³/min	68 CFM	Auto Restart Speed Sensor (Tach)	Tubeaxial	110 mA	119.75 g	0.264 lb
Mechatronics Bearing Group MR9225H24B-FSR	Plastic	2 Wire Leads	24 VDC	4000 RPM	25 mm	CE cUL TUV UL	Ball	Plastic	0.4 in H2O	99.6 Pa	48 dB	2.52 mł/min	90 CFM	Auto Restart	Tubeaxial	0.25 A	119.75 g	0.264 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 14.36

Description

General part information

MR9225 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 81.0 CFM (2.27m³/min) 4 Wire Leads

Documents

Technical documentation and resources

AC/DC Fans & Blowers Catalog

Datasheet
