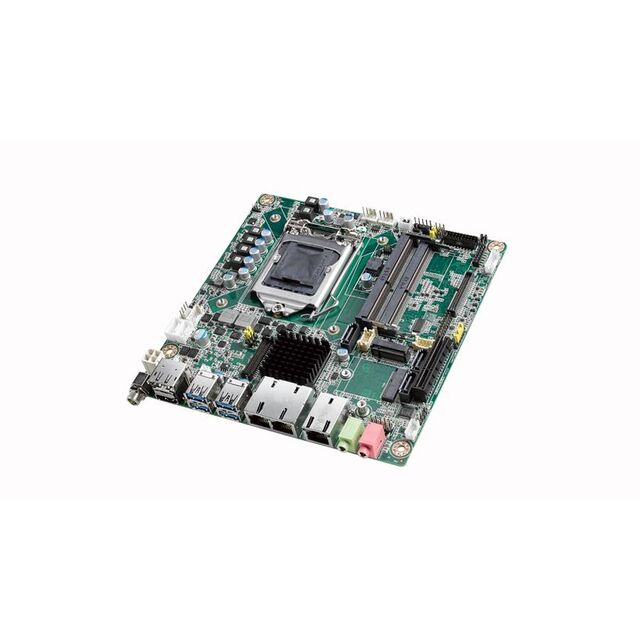

AIMB-286G2-00A1E
ActiveAdvantech Corp
SBC 3.7GHZ 2/4/6/8CR 64GB/0GB RM
Deep-Dive with AI
Search across all available documentation for this part.
AIMB-286G2-00A1E
ActiveAdvantech Corp
SBC 3.7GHZ 2/4/6/8CR 64GB/0GB RM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMB-286G2-00A1E |
|---|---|
| Core Processor | Intel 8th/9th Gen Core i7/i5/i3/Pentium/Celeron LGA1151 |
| Digital I/O Lines | 16 |
| Ethernet | 100 Mbps, 1000 Mbps, 10 Mbps |
| Ethernet | RJ45 |
| Expansion Site/Bus | LAN, M.2, PCIe |
| Form Factor | mini-ITX |
| Number of Cores | 4, 8, 6, 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) [Max] | 65 W |
| Power (Watts) [Min] | 35 W |
| RAM Capacity/Installed | 0 GB, 64 GB |
| RS-232 (422, 485) | 6 |
| Size / Dimension [x] | 169.92 mm |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [y] | 6.69 in |
| Size / Dimension [y] | 169.92 mm |
| Speed [Max] | 3.7 GHz |
| Speed [Min] | 1.8 GHz |
| Storage Interface | SATA 3.0 (3) |
| USB | USB 2.0, USB 3.0 |
| Video Outputs | HDMI, LVDS, DVI, DP |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 287.78 | |
Description
General part information
AIMB-286 Series
Single Board Computer 1.8GHz ~ 3.7GHz 2/4/6/8 Core 64GB/0GB RAM Intel 8th/9th Gen Core i7/i5/i3/Pentium/Celeron LGA1151
Documents
Technical documentation and resources
No documents available
