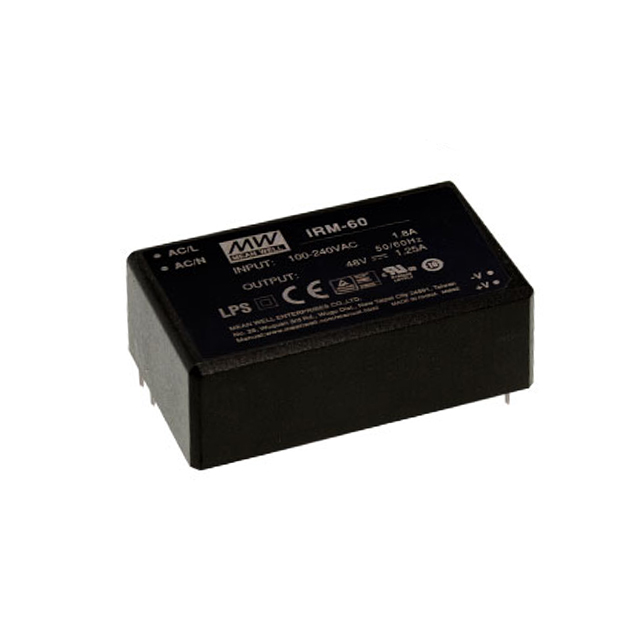

IRM-60-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 60W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Efficiency	Line Regulation	Number of Outputs	Power (Watts)	Voltage - Output 1	Mounting Type	Standard Number	Type	Approval Agency	Load Regulation	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1
MEAN WELL USA Inc. IRM-60-12	Universal Input	4-DIP Module	29.5 mm	3.43 in	52 mm	87 mm	2.05 in	1.16 "	ITE (Commercial)	70 °C	-30 °C	5 A	87.5 %	0.5 %	1	60 W	12 V	Through Hole	60335-1 62368-1	Enclosed	CB CE cURus TUV	1 %
MEAN WELL USA Inc. IRM-60-5ST	Universal Input		33.5 mm	4.29 in	52 mm	109 mm	2.05 in	1.32 in	ITE (Commercial)	70 °C	-30 °C		84 %		1		5 V	Chassis Mount	60335-1 62368-1	Enclosed	CB CE cURus TUV		3000 V	85 VAC	305 VAC	10 A
MEAN WELL USA Inc. IRM-60-24ST	Universal Input		33.5 mm	4.29 in	52 mm	109 mm	2.05 in	1.32 in	ITE (Commercial)	70 °C	-30 °C		90 %		1		24 V	Chassis Mount	60335-1 62368-1	Enclosed	CB CE cURus TUV		3000 V			2.5 A
MEAN WELL USA Inc. IRM-60-15ST	Universal Input		33.5 mm	4.29 in	52 mm	109 mm	2.05 in	1.32 in	ITE (Commercial)	70 °C	-30 °C		89 %		1		15 V	Chassis Mount	60335-1 62368-1	Enclosed	CB CE cURus TUV		3000 V			4 A
MEAN WELL USA Inc. IRM-60-48	Universal Input	4-DIP Module	29.5 mm	3.43 in	52 mm	87 mm	2.05 in	1.16 "	ITE (Commercial)	70 °C	-30 °C	1.25 A	91 %	0.5 %	1	60 W	48 V	Through Hole	60335-1 62368-1	Enclosed	CB CE cURus TUV	0.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 5A 85 ~ 264 VAC Input
