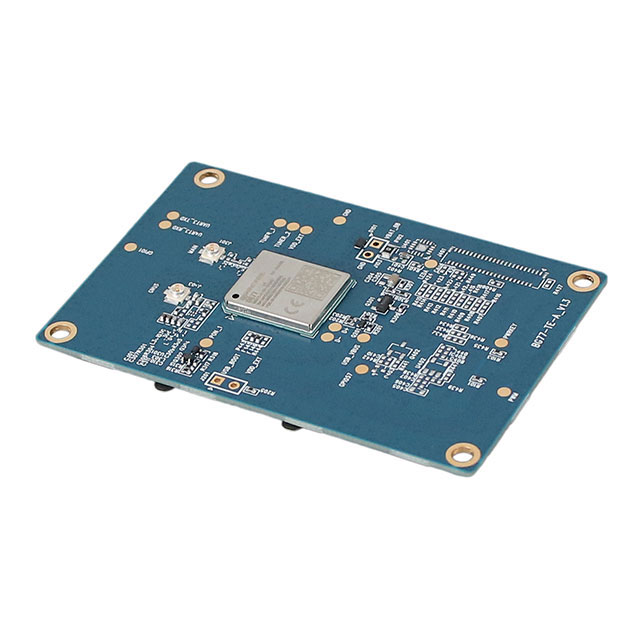

BG77LATEA-64-SGNS

Active

Quectel

RF TXRX MOD CELL NAV SMD

Search across all available documentation for this part.

Active

Quectel

RF TXRX MOD CELL NAV SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BG77LATEA-64-SGNS

Antenna Type	Antenna Not Included
Current - Receiving	19.6 mA
Data Rate	1.119 Mbps
Mounting Type	Surface Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Package / Case	Module
Power - Output	21 dBm
Protocol	GLONASS, GPS, LTE, Beidou, Galileo, GNSS
RF Family/Standard	Cellular, Navigation
Serial Interfaces	PCM, USB, ADC, I2C, GPIO, UART
Voltage - Supply [Max]	4.8 V
Voltage - Supply [Min]	2.6 V

Part	Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Serial Interfaces	Data Rate	Operating Temperature [Min]	Operating Temperature [Max]	Power - Output	Current - Receiving	Package / Case	Antenna Type	Mounting Type	RF Family/Standard
Quectel BG77LATEA-64-SGNS	Beidou Galileo GLONASS GNSS GPS LTE	2.6 V	4.8 V	ADC GPIO I2C PCM UART USB	1.119 Mbps	-35 °C	75 ░C	21 dBm	19.6 mA	Module	Antenna Not Included	Surface Mount	Cellular Navigation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 39.06

General part information

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE Transceiver Module Antenna Not Included Surface Mount
