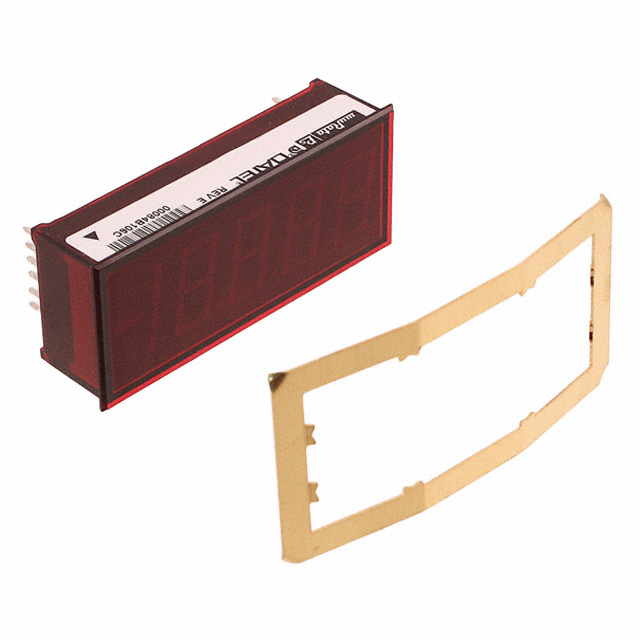

DMS-40PC-2-RH-C

Obsolete

Murata Power Solutions Inc.

VOLTMETER 20VDC LED PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DMS-40PC-2-RH-C

Obsolete

Murata Power Solutions Inc.

VOLTMETER 20VDC LED PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMS-40PC-2-RH-C

Display Characters - Height	0.52 in
Display Characters - Height	13.2 mm
Display Type	LED - Red Characters
Features	Bezel Sold Separately
Measuring Type	Voltage
Number of Characters Per Row	4.5
Output Type	Reference
Panel Cutout Dimensions [x]	53.8 mm
Panel Cutout Dimensions [y]	22.3 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply	5 V
Weight	20.87 g
Weight	0.046 lb

DMS-40PC Series

Part	Type	Output Type	Display Type	Weight	Weight	Display Characters - Height	Display Characters - Height	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Type	Voltage - Supply	Termination Style	Number of Characters Per Row	Features	Measuring Range [Max]	Measuring Range [Min]
Murata Power Solutions Inc. DMS-40PC-2-RH-C	Voltmeter	Reference	LED - Red Characters	20.87 g	0.046 lb	0.52 in	13.2 mm	22.3 mm	53.8 mm	Voltage	5 V	PC Pin	4.5	Bezel Sold Separately
Murata Power Solutions Inc. DMS-40PC-4/20S-24RS-I-C	Process Meter		LED - Red Characters	28.12 g	0.062 lb	0.52 in	13.2 mm	22.3 mm	53.8 mm	Process	24 VDC	Screw Terminal	4.5
Murata Power Solutions Inc. DMS-40PC-1-RH-C	Voltmeter		LED - Red Characters	20.87 g	0.046 lb	0.52 in	13.2 mm	22.3 mm	53.8 mm	Voltage	5 V	PC Pin	4.5		2 V	-2 V
Murata Power Solutions Inc. DMS-40PC-3-RS-C	Voltmeter	Reference	LED - Red Characters	20.87 g	0.046 lb	0.52 in	13.2 mm	22.3 mm	53.8 mm	Voltage	5 V	PC Pin	4.5	Bezel Sold Separately	200 V	-200 V
Murata Power Solutions Inc. DMS-40PC-2-RS-BCD-C	Voltmeter	Reference	LED - Red Characters	20.87 g	0.046 lb	0.52 in	13.2 mm	22.3 mm	53.8 mm	Voltage	5 V	PC Pin	4.5	Bezel Sold Separately
Murata Power Solutions Inc. DMS-40PC-1-RS-BCD-C	Voltmeter	Reference	LED - Red Characters	20.87 g	0.046 lb	0.52 in	13.2 mm	22.3 mm	53.8 mm	Voltage	5 V	PC Pin	4.5	Bezel Sold Separately	2 V	-2 V
Murata Power Solutions Inc. DMS-40PC-3-GS-C	Voltmeter	Reference	LED - Green Characters	20.87 g	0.046 lb	0.52 in	13.2 mm	22.3 mm	53.8 mm	Voltage	5 V	PC Pin	4.5	Bezel Sold Separately	200 V	-200 V
Murata Power Solutions Inc. DMS-40PC-1-RL-BCD-C	Voltmeter	BCD Output	LED - Red Characters	20.87 g	0.046 lb	0.52 in	13.2 mm	22.3 mm	53.8 mm	Voltage	5 V	PC Pin	4.5		2 V	-2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DMS-40PC Series

Voltmeter LED - Red Characters Display Panel Mount
