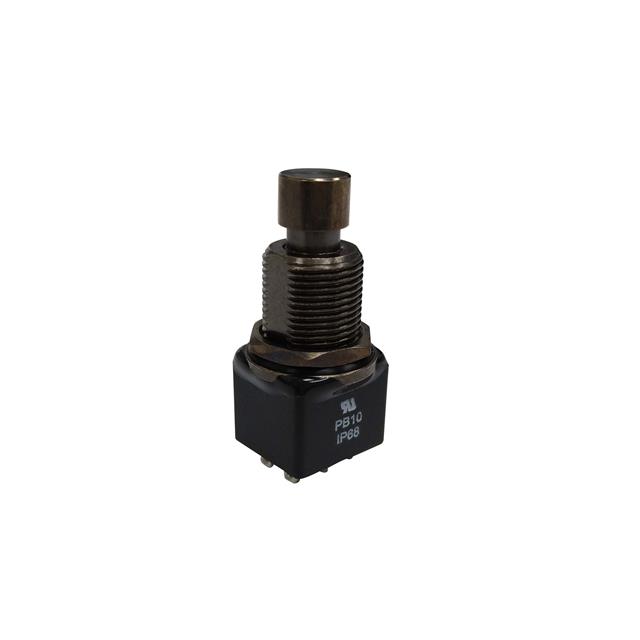

SW-PB10-BAA1QE-4
ActiveAdam Tech
HIGH PERFORMANCE SEALED PUSHBUTT
Deep-Dive with AI
Search across all available documentation for this part.
SW-PB10-BAA1QE-4
ActiveAdam Tech
HIGH PERFORMANCE SEALED PUSHBUTT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-PB10-BAA1QE-4 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 6 A |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.45 | |
| 10 | $ 17.64 | |||
| 25 | $ 16.63 | |||
| 72 | $ 15.54 | |||
| 144 | $ 14.86 | |||
| 288 | $ 14.21 | |||
| 504 | $ 13.70 | |||
Description
General part information
SW-PB10 Series
Pushbutton Switch DPDT Standard Panel Mount, Rear
