C14610R0245061
ActiveAmphenol Tuchel Industrial

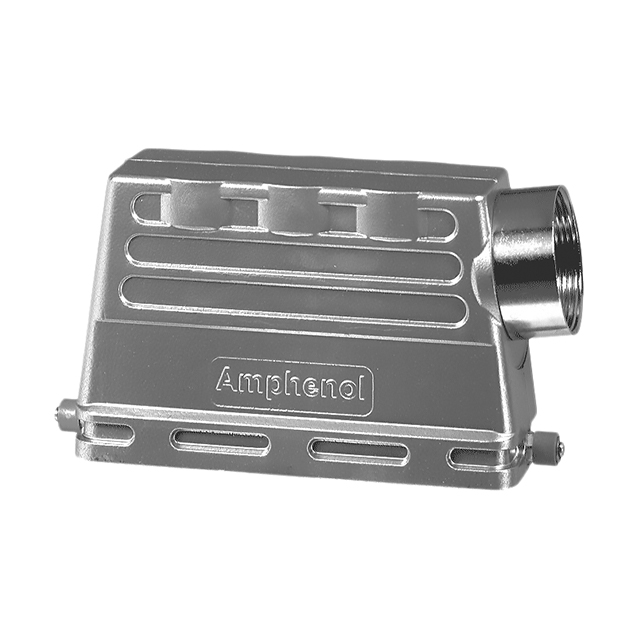

CONN HOOD SIDE ENTRY SZE24 M32
Deep-Dive with AI
Search across all available documentation for this part.
C14610R0245061
ActiveAmphenol Tuchel Industrial
CONN HOOD SIDE ENTRY SZE24 M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C14610R0245061 |
|---|---|
| Connector Type | Hood |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E24 |
| Size / Dimension [x] | 4.724 " |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 2.441 " |
| Size / Dimension [z] | 62 mm |
| Style | Side Entry |
| Thread Size | M32 |
C14610R024 Series
| Part | Connector Type | Style | Ingress Protection | Housing Material | Size | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Lock Location | Thread Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Hood | Top Entry | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Locking Clip (2) on Hood | ||
Amphenol Tuchel Industrial | Hood | Top Entry | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Locking Clip (2) on Base Bottom | M25 | |
Amphenol Tuchel Industrial | Hood | Side Entry | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 62 mm | 1.693 in | 2.441 " | Locking Clip (1) on Base Bottom | M32 | |
Amphenol Tuchel Industrial | Hood | Top Entry | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Locking Clip (1) on Base Bottom | M32 | |
Amphenol Tuchel Industrial | Hood | Side Entry | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Locking Clip (1) on Base Bottom | M25 | |
Amphenol Tuchel Industrial | Hood | Top Entry | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Locking Clip (2) on Base Bottom | M32 | |
Amphenol Tuchel Industrial | Hood - Coupling | Bottom Entry | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | E16 | 100 °C | -40 °C | Locking Clip (2) on Hood Top | M25 | Cable to Cable | ||||||
Amphenol Tuchel Industrial | Hood | Top Entry | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Locking Clip (1) on Base Bottom | M25 | |
Amphenol Tuchel Industrial | Hood | Top Entry | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 62 mm | 1.693 in | 2.441 " | Locking Clip (1) on Base Bottom | M32 | |
Amphenol Tuchel Industrial | Hood | Top Entry | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | E24 | 100 °C | -40 °C | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Locking Clip (1) on Base Bottom |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 45 | $ 22.50 | |
Description
General part information
C14610R024 Series
Hood Connector Side Entry M32 E24 IP65 - Dust Tight, Water Resistant
