0250020603

Obsolete

Molex

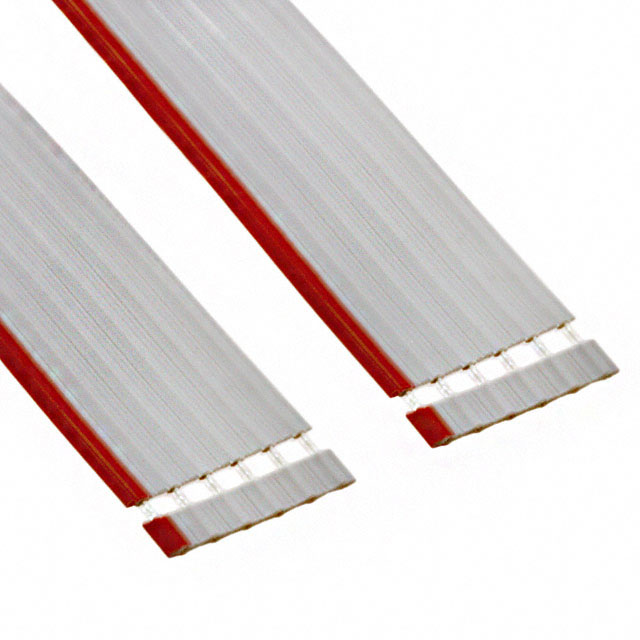

CABLE JUMPER 6POS 2.54MM 3.25"

Search across all available documentation for this part.

Obsolete

Molex

CABLE JUMPER 6POS 2.54MM 3.25"

Technical Specifications

Parameters and characteristics for this part

Specification	0250020603

Cable Type	Ribbon
Length - Exposed Ends [x]	0.125 in
Length - Exposed Ends [x]	3.18 mm
Length [x]	3.25 "
Length [x]	82.55 mm
Number of Conductors	6
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination Style	Completely Exposed Wires on Both Sides with Protective Tab

Part	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Length [x]	Length [x]	Cable Type	Termination Style	Length	Length
Molex 0250020301
Molex 0250020603	2.54 mm	0.1 in	0.125 in	3.18 mm	6	3.25 "	82.55 mm	Ribbon	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0250020501	2.54 mm	0.1 in	0.125 in	3.18 mm	5			Ribbon	Completely Exposed Wires on Both Sides with Protective Tab	31.75 mm	1.25 in
Molex 0250020801	2.54 mm	0.1 in	0.125 in	3.18 mm	8			Ribbon	Completely Exposed Wires on Both Sides with Protective Tab	31.75 mm	1.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Ribbon Cable 0.100" (2.54mm) 3.250" (82.55mm)

Technical documentation and resources

No documents available
