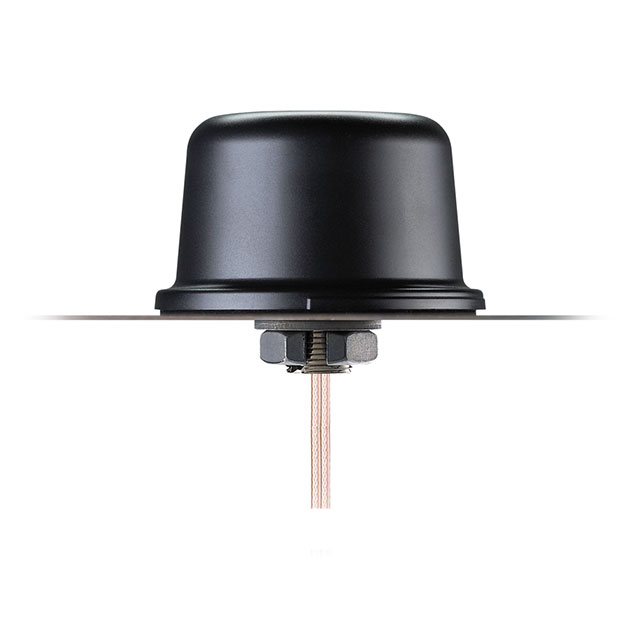

MA841.A.BI.002

Active

TAOGLAS

RF ANTENNA, 2.49 TO 2.69GHZ, MIMO, 5.91DBI, 50 OHM, LINEAR

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 2.49 TO 2.69GHZ, MIMO, 5.91DBI, 50 OHM, LINEAR

Technical Specifications

Parameters and characteristics for this part

Specification	MA841.A.BI.002

Antenna Type	Dome
Applications	LTE, 2G, 4G, 3G
Features	Cable - 1m
Frequency (Center/Band)	2.045 GHz, 1.795 GHz, 920 MHz, 1.92 GHz, 2.59 GHz, 750.5 MHz, 859 MHz
Frequency Group	Wide Band
Frequency Range [Max]	803 MHz, 1.99 GHz, 894 MHz, 960 MHz, 2.69 GHz, 2.17 GHz, 1.88 GHz
Frequency Range [Min]	1920 MHz, 1.71 GHz, 880 MHz, 824 MHz, 698 MHz, 1.85 GHz, 2.49 GHz
Gain	2.37 dBi, 3.56 dBi, 2.72 dBi, 1.79 dBi, 1.95 dBi, 2.36 dBi, 4.99 dBi, 1.51 dBi, 5.91 dBi, 2.09 dBi, 1.04 dBi, 1.32 dBi, 1.98 dBi
Height (Max)	57.4 mm
Height (Max) [Max]	2.26 "
Ingress Protection	IP67
Number of Bands	7
RF Family/Standard	Cellular
VSWR	3.5

Part	Ingress Protection	Frequency Group	Gain	RF Family/Standard	Frequency Range [Min]	Frequency Range [Max]	Applications	Features	Height (Max) [Max]	Height (Max)	VSWR	Frequency (Center/Band)	Number of Bands	Antenna Type
TAOGLAS MA841.A.BI.002	IP67	Wide Band	1.04 dBi 1.32 dBi 1.51 dBi 1.79 dBi 1.95 dBi 1.98 dBi 2.09 dBi 2.36 dBi 2.37 dBi 2.72 dBi 3.56 dBi 4.99 dBi 5.91 dBi	Cellular	1.71 GHz 1.85 GHz 2.49 GHz 698 MHz 824 MHz 880 MHz 1920 MHz	1.88 GHz 1.99 GHz 2.17 GHz 2.69 GHz 803 MHz 894 MHz 960 MHz	2G 3G 4G LTE	Cable - 1m	2.26 "	57.4 mm	3.5	1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 750.5 MHz 859 MHz 920 MHz	7	Dome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 2G, 3G, 4G, LTE Dome SMA Male Panel Mount
