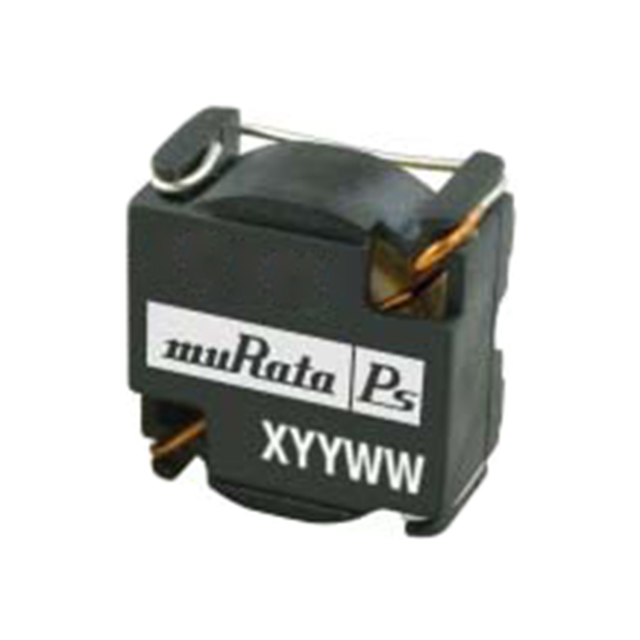

40101C

Obsolete

Murata Power Solutions Inc.

FIXED IND 100UH 940MA 177MOHM SM

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 100UH 940MA 177MOHM SM

Technical Specifications

Parameters and characteristics for this part

Part	Type	Current Rating (Amps)	Package / Case	Inductance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. 40470C	Toroidal	1.42 A	Nonstandard	47 µH	Surface Mount	0.345 in	8.76 mm	10 kHz	79 mOhm	Unshielded	85 °C	-40 °C
Murata Power Solutions Inc. 40100C	Toroidal	3 A	Nonstandard	10 µH	Surface Mount	0.345 in	8.76 mm	10 kHz	23 mOhm	Unshielded	85 °C	-40 °C
Murata Power Solutions Inc. 40151C	Toroidal	760 mA	Nonstandard	150 µH	Surface Mount	0.345 in	8.76 mm	10 kHz		Unshielded	85 °C	-40 °C
Murata Power Solutions Inc. 40101C	Toroidal	940 mA	Nonstandard	100 µH	Surface Mount	0.345 in	8.76 mm	10 kHz	177 mOhm	Unshielded	85 °C	-40 °C
Murata Power Solutions Inc. 40331C	Toroidal	0.54 A	Nonstandard	330 µH	Surface Mount	0.345 in	8.76 mm	10 kHz	610 mOhm	Unshielded	85 °C	-40 °C
Murata Power Solutions Inc. 40221C	Toroidal	0.67 A	Nonstandard	220 µH	Surface Mount	0.345 in	8.76 mm	10 kHz	405 mOhm	Unshielded	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 µH Unshielded Toroidal Inductor 940 mA 177mOhm Max Nonstandard
