EKZE160ELL471MH15D

Obsolete

Chemi-Con

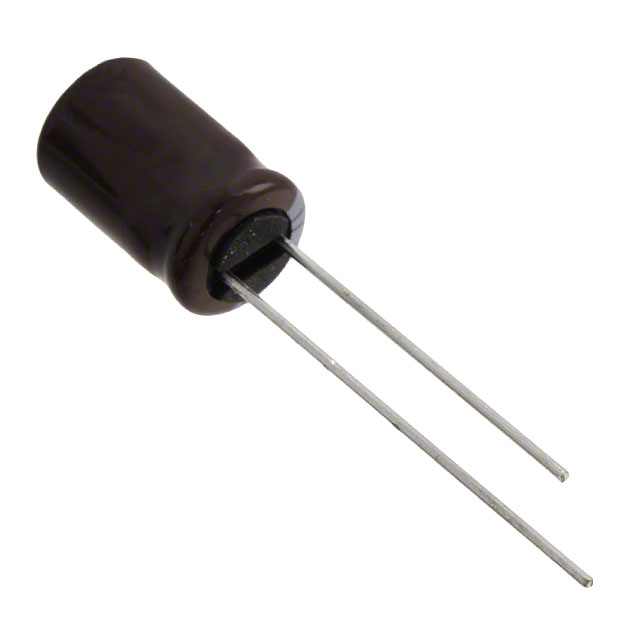

CAP ALUM 470UF 20% 16V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE160ELL471MH15D

Obsolete

Chemi-Con

CAP ALUM 470UF 20% 16V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKZE160ELL471MH15D

Applications	General Purpose
Capacitance	470 µF
Height - Seated (Max) [Max] [z]	16.5 mm
Height - Seated (Max) [Max] [z]	16.51 mm
Impedance	56 mOhms
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	995 mA
Ripple Current @ Low Frequency	497.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	16 V

EKZE160E Series

Part	Voltage - Rated	Lead Spacing	Lead Spacing	Impedance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Tolerance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE160ELL681MJ16S	16 V	5 mm	0.197 in	38 mOhms	858 mA	4000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	10 mm	0.394 in	1.43 A	0.689 in	17.5 mm	Through Hole	680 µF
Chemi-Con EKZE160ELL331MHB5D	16 V	3.5 mm	0.138 in	72 mOhms	380 mA	3000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	8 mm	0.315 "				Through Hole	330 µF	13 mm	0.512 "
Chemi-Con EKZE160ETD222MK25S	16 V	5 mm	0.197 in	18 mOhms	2.0775 A	5000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	12.5 mm	0.492 in	2.77 A			Through Hole	2200 µF	26.5 mm	1.043 in
Chemi-Con EKZE160ELL680MF07D	16 V	2.5 mm	0.098 in	240 mOhms	150 mA	2000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	6.3 mm	0.248 in	300 mA			Through Hole	68 µF	8 mm	0.315 in
Chemi-Con EKZE160ELL471MH15D	16 V	3.5 mm	0.138 in	56 mOhms	497.5 mA	3000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	8 mm	0.315 "	995 mA			Through Hole	470 µF	16.5 mm	16.51 mm
Chemi-Con EKZE160ELL332MK35S	16 V	5 mm	0.197 in	15 mOhms	2.55 A	5000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	12.5 mm	0.492 in	3.4 A			Through Hole	3.3 mF	36.5 mm	1.437 in
Chemi-Con EKZE160ELL272MK30S	16 V	5 mm	0.197 in	16 mOhms	2.4675 A	5000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	12.5 mm	0.492 in	3.29 A	1.24 in	31.5 mm	Through Hole	2700 µF
Chemi-Con EKZE160ETD102MJ20S	16 V	5 mm	0.197 in	23 mOhms	1.092 A	4000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	10 mm	0.394 in	1.82 A	0.846 in	21.5 mm	Through Hole	1000 µF
Chemi-Con EKZE160EMC122MJ25S	16 V	5 mm	0.197 in	22 mOhms	1.29 A	4000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	10 mm	0.394 in	2.15 A			Through Hole	1.2 mF	26.5 mm	1.043 in
Chemi-Con EKZE160ELL122MJ25S	16 V	5 mm	0.197 in	22 mOhms	1.29 A	4000 Hrs	-40 °C	105 ░C	General Purpose	Radial Can	20 %	Polar	10 mm	0.394 in	2.15 A			Through Hole	1.2 mF	26.5 mm	1.043 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.75
		10	$ 0.50
		50	$ 0.40
		100	$ 0.33
		500	$ 0.26
		1000	$ 0.22

Description

General part information

EKZE160E Series

470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
