Q-1U0710005001M

Active

Amphenol Custom Cable

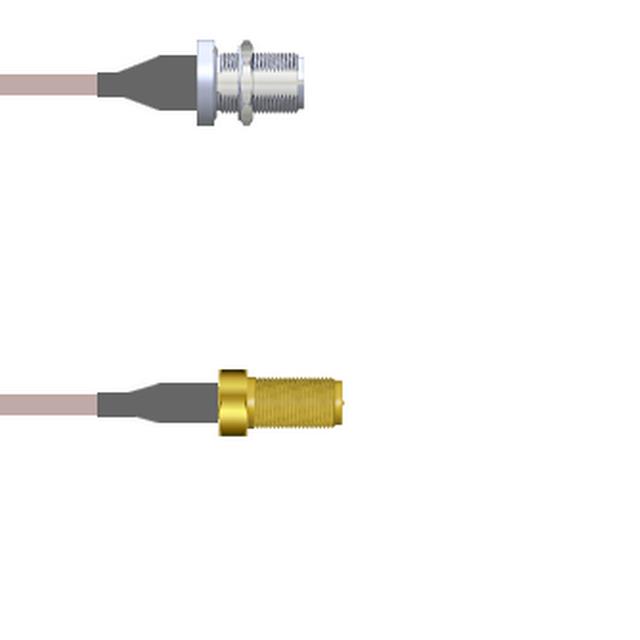

CBL ASSY RPSMA-NTYPE JK-JK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U0710005001M

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JK-JK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U0710005001M

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-1U0710 Series

Part	2nd Connector Mounting Type	2nd Connector	Frequency - Max [Max]	Overall Impedance	Style	Features	2nd Connector Mounting Feature	2nd Contact Gender	1st Contact Gender	Cable Type	1st Connector	Color	Length	Length	1st Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1U0710003.75M	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-174	RP-SMA Jack	Black	29.53 "	750 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-1U0710005036i	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-316	RP-SMA Jack	Copper	36 in	91.44 cm	Free Hanging (In-Line)
Amphenol Custom Cable Q-1U0710005012i	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-316	RP-SMA Jack	Copper	12 "	304.8 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-1U0710003006i	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-174	RP-SMA Jack	Black	6 in	152.4 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-1U0710005001M	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-316	RP-SMA Jack	Copper	39.4 in	1 m	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-1U0710005003i	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-316	RP-SMA Jack	Copper	3 in	76.2 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-1U0710003.25M	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-174	RP-SMA Jack	Black			Free Hanging (In-Line)		9.843 "	250 mm
Amphenol Custom Cable Q-1U0710005002M	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-316	RP-SMA Jack	Copper	78.7 in	2 m	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-1U0710003048i	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-174	RP-SMA Jack	Black	48 in	1200 mm	Free Hanging (In-Line)	4 ft
Amphenol Custom Cable Q-1U0710005060i	Panel Mount	N-Type Jack	11 GHz	50 Ohms	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	Female	Male	RG-316	RP-SMA Jack	Copper	5 '	1.5 m	Free Hanging (In-Line)	5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 113.56
		25	$ 111.39
		50	$ 109.23
		100	$ 107.06
		250	$ 104.90

Description

General part information

Q-1U0710 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-316 39.4" (1.0m) 3.3'
