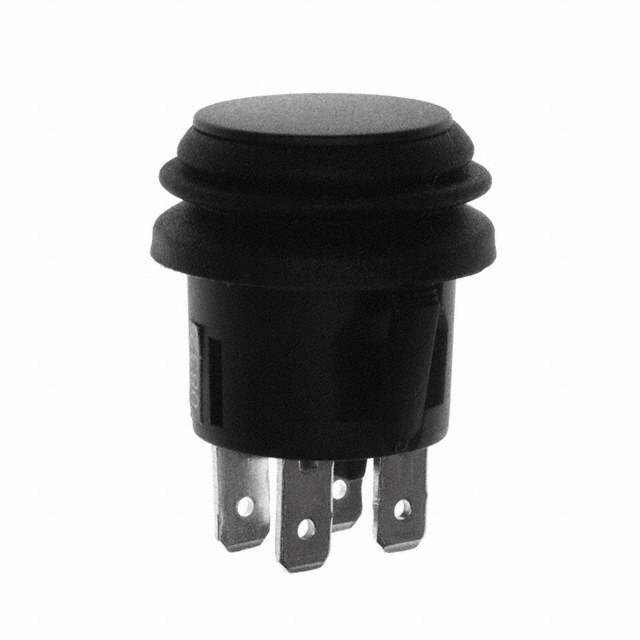

KFB3ANA1BBB

Active

ZF Electronics

SWITCH PUSH DPST 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH PUSH DPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KFB3ANA1BBB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	6000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Actuator Type	Voltage Rating - AC	Mechanical Life	Termination Style	Actuator Marking	Switch Function	Mounting Type	Circuit	Ingress Protection	Voltage Rating - DC	Current Rating (Amps)	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Type	Electrical Life	Panel Cutout Dimensions [diameter]
ZF Electronics KFB3ANA1BBB	Button Round	125 V	100000 Cycles	Quick Connect - 0.187" (4.7mm)	No Marking	On-Off	Panel Mount Snap-In	DPST	IP65 - Dust Tight Water Resistant	28 V	10 A	Black	-25 °C	85 °C	Standard	6000 Cycles	20.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST Standard Panel Mount, Snap-In

Technical documentation and resources

No documents available
