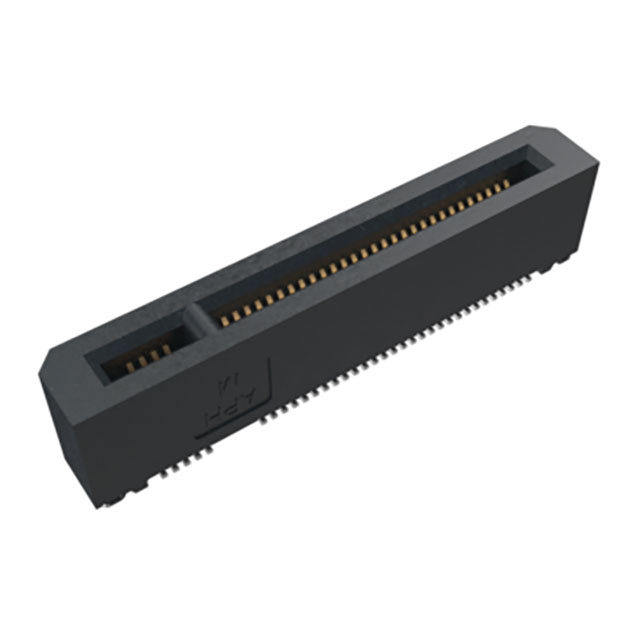

MDT350M01001VT

Active

Amphenol ICC (FCI)

CONN M.2 FMALE 67POS 0.020 GOLD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN M.2 FMALE 67POS 0.020 GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	MDT350M01001VT

Card Thickness	0.031 in
Card Thickness	0.79 mm
Card Type	M.2 (NGFF) Mini Card
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide, Locking Ramp, Solder Retention
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	67
Number of Rows	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Read Out	Dual
Termination	Solder

Part	Color	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Features	Material - Insulation	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Gender	Card Type	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Card Thickness	Card Thickness
Amphenol ICC (FCI) MDT350M01001VT	Black	Dual	-40 °C	80 C	2	Board Guide Locking Ramp Solder Retention	Liquid Crystal Polymer (LCP)	Gold	0.76 Ám	30 Áin	Copper Alloy	Solder	Female	M.2 (NGFF) Mini Card	0.5 mm	0.02 in	67	Surface Mount	0.031 in	0.79 mm
