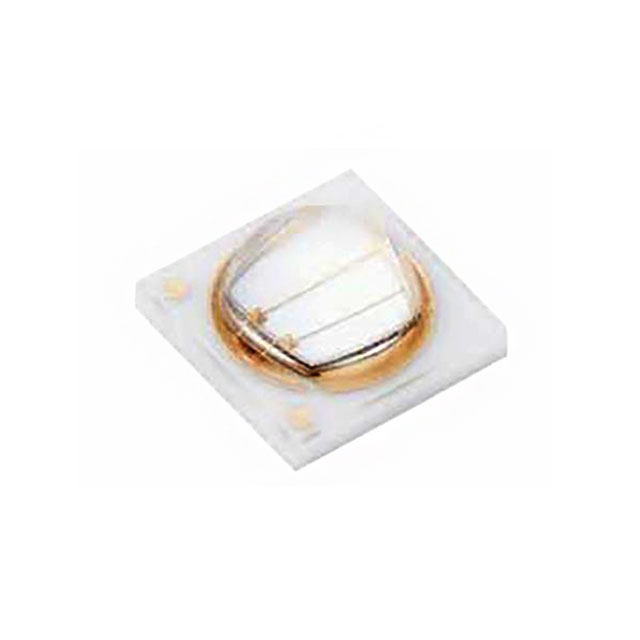

S1CH-3535400003-00000000-00001
ActiveSeoul Semiconductor
LED ULTRAVIOLET 3535
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S1CH-3535400003-00000000-00001
ActiveSeoul Semiconductor
LED ULTRAVIOLET 3535
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S1CH-3535400003-00000000-00001 |
|---|---|
| Color | UltraViolet |
| Current - Max [Max] | 500 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 2.08 mm |
| Height - Seated (Max) [Max] [z] | 0.082 in |
| Luminous Flux @ Current/Temperature | 668 mW |
| Mounting Type | Surface Mount |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 in |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Supplier Device Package | 3535 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.45 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.92 | |
| 10 | $ 1.37 | |||
| 100 | $ 1.04 | |||
| 500 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 1.92 | ||
| 10 | $ 1.37 | |||
| 100 | $ 1.04 | |||
| 500 | $ 0.90 | |||
| Tape & Reel (TR) | 1000 | $ 0.68 | ||
| 2000 | $ 0.66 | |||
Description
General part information
S1CH Series
LED Lighting Color - Ultraviolet 1414 (3535 Metric)
