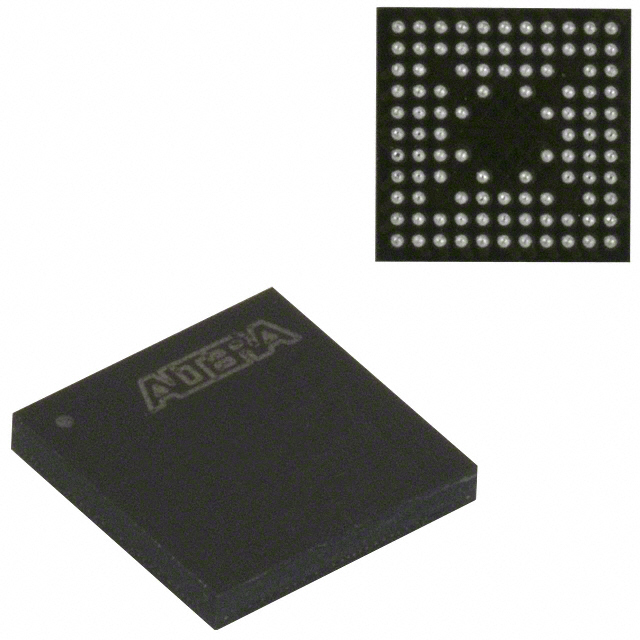

5M570ZM100C4N

Active

Altera

IC CPLD 440MC 9NS 100MBGA

Search across all available documentation for this part.

Active

Altera

IC CPLD 440MC 9NS 100MBGA

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Delay Time tpd(1) Max [Max]	Number of I/O	Programmable Type	Number of Macrocells	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]
Altera 5M570ZT100C4N	Surface Mount	100-TQFP	100-TQFP (14x14)	0 °C	85 °C	9 ns	74 I/O	In System Programmable	440	1.71 V	1.89 V
Altera 5M570ZF256I5N	Surface Mount	256-LBGA	256-FBGA (17x17)	-40 C	100 °C	9 ns		In System Programmable	440	1.71 V	1.89 V
Altera 5M570ZM100C4N	Surface Mount		100-MBGA (6x6)	0 °C	85 °C	9 ns	74 I/O	In System Programmable	440	1.71 V	1.89 V
Altera 5M570ZXXAA
Altera 5M570ZT100C5N	Surface Mount	100-TQFP	100-TQFP (14x14)	0 °C	85 °C	9 ns	74 I/O	In System Programmable	440	1.71 V	1.89 V
Altera 5M570ZF256C4N	Surface Mount	256-LBGA	256-FBGA (17x17)	0 °C	85 °C	9 ns		In System Programmable	440	1.71 V	1.89 V
Altera 5M570ZM100I5N	Surface Mount		100-MBGA (6x6)	-40 C	100 °C	9 ns	74 I/O	In System Programmable	440	1.71 V	1.89 V
Altera 5M570ZT100A5N	Surface Mount	100-TQFP	100-TQFP (14x14)	-40 °C	125 ¯C	9 ns	74 I/O	In System Programmable	440	1.71 V	1.89 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	429	$ 15.97

General part information

IC CPLD 440MC 9NS 100MBGA

Technical documentation and resources

No documents available
