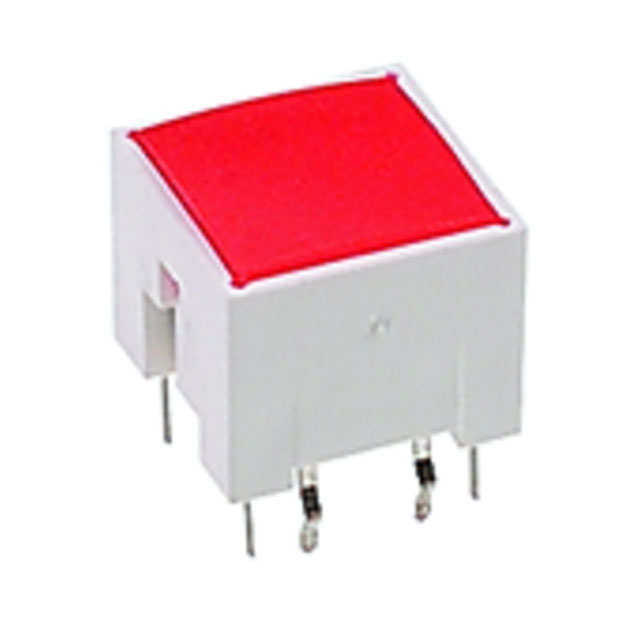

1.14.001.554/0000
ActiveRAFI USA
SWITCH TACTILE SPST-NO 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.14.001.554/0000
ActiveRAFI USA
SWITCH TACTILE SPST-NO 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.14.001.554/0000 |
|---|---|
| Actuator Height off PCB, Vertical | 9.7 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Square Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 42 VAC/DC, 0.1 A |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Yellow |
| Illumination Voltage (Nominal) | 1.9 VDC |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 330 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 11.35 mm |
| Outline [y] | 11.35 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.34 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 270 | $ 9.48 | |
Description
General part information
1.14.001 Series
Tactile Switch SPST-NO Top Actuated Through Hole
