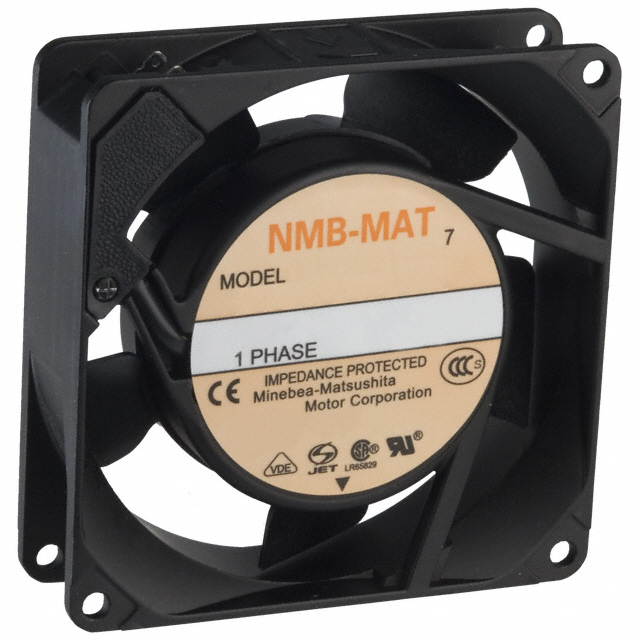

3610PS-23T-B10-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 230VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fan Agency Approvals +1

3610PS-23T-B10-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 230VAC TERM

Deep-Dive with AI

DocumentsDatasheet Fan Agency Approvals +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3610PS-23T-B10-A00

Air Flow	20 CFM
Air Flow	0.56 m³/min
Approval Agency	CSA, UL, VDE, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	40 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polycarbonate (PC), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	26 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6 W
RPM	1800 RPM
Static Pressure	0.08 in H2O
Static Pressure	19.9 Pa
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	299.37 g
Weight	0.66 lb
Width [y]	25 mm

3610PS Series

Part	Static Pressure	Static Pressure	Termination	Air Flow	Air Flow	Bearing Type	RPM	Power (Watts)	Noise	Weight	Weight	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Lifetime @ Temp.	Approval Agency	Material - Frame	Width [y]	Voltage - Rated	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [z]
NMB TECHNOLOGIES 3610PS-12T-B30-A00	0.243 in H2O	60.7 Pa	2 Terminals	0.966 mł/min	34.5 CFM	Ball	3100 RPM	9 W	38 dB(A)	299.37 g	0.66 lb	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	115 VAC
NMB TECHNOLOGIES 3610PS-10T-B20-B00	0.157 in H2O	39.2 Pa	2 Terminals	0.784 m³/min	28 CFM	Ball	2500 RPM	6 W	35 dB			Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	100 VAC	85 mA	92.5 mm	92.5 mm
NMB TECHNOLOGIES 3610PS-12W-B20-A00	0.16 in H2O	40 Pa	2 Wire Leads	0.784 m³/min	28 CFM	Ball	2500 RPM	6 W	35 dB	299.37 g	0.66 lb	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	115 VAC	0.09 A
NMB TECHNOLOGIES 3610PS-20T-B30-B00	0.243 in H2O	60.7 Pa	2 Terminals	0.966 mł/min	34.5 CFM	Ball	3100 RPM	10 W	38 dB(A)			Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	200 VAC		92.5 mm	92.5 mm
NMB TECHNOLOGIES 3610PS-23T-B10-A00	0.08 in H2O	19.9 Pa	2 Terminals	0.56 m³/min	20 CFM	Ball	1800 RPM	6 W	26 dB	299.37 g	0.66 lb	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	230 VAC	40 mA
NMB TECHNOLOGIES 3610PS-23T-B30-A00	0.243 in H2O	60.7 Pa	2 Terminals	0.966 mł/min	34.5 CFM	Ball	3100 RPM	10 W	39 dB(A)	299.37 g	0.66 lb	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	230 VAC	70 mA
NMB TECHNOLOGIES 3610PS-23W-B20-A00	0.16 in H2O	40 Pa	2 Wire Leads	0.784 m³/min	28 CFM	Ball	2500 RPM	6 W	35 dB	299.37 g	0.66 lb	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	230 VAC	50 mA
NMB TECHNOLOGIES 3610PS-23W-B30-A00	0.243 in H2O	60.7 Pa	2 Wire Leads	0.966 mł/min	34.5 CFM	Ball	3100 RPM	10 W	39 dB(A)	299.37 g	0.66 lb	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	230 VAC	70 mA
NMB TECHNOLOGIES 3610PS-12T-B20-A00	0.16 in H2O	40 Pa	2 Terminals	0.784 m³/min	28 CFM	Ball	2500 RPM	6 W	35 dB	299.37 g	0.66 lb	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	115 VAC	0.09 A
NMB TECHNOLOGIES 3610PS-22T-B10-B00	0.079 in H2O	19.6 Pa	2 Terminals			Ball	1800 RPM	7 W	26 dB			Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Fiberglass Reinforced Polycarbonate (PC)	50000 Hrs	CE CSA TUV UL VDE	Aluminum	25 mm	220 VAC	40 mA	92.5 mm	92.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.94

Description

General part information

3610PS Series

Fan Tubeaxial 230VAC Square - 92mm L x 92mm H Ball 20.0 CFM (0.560m³/min) 2 Terminals
