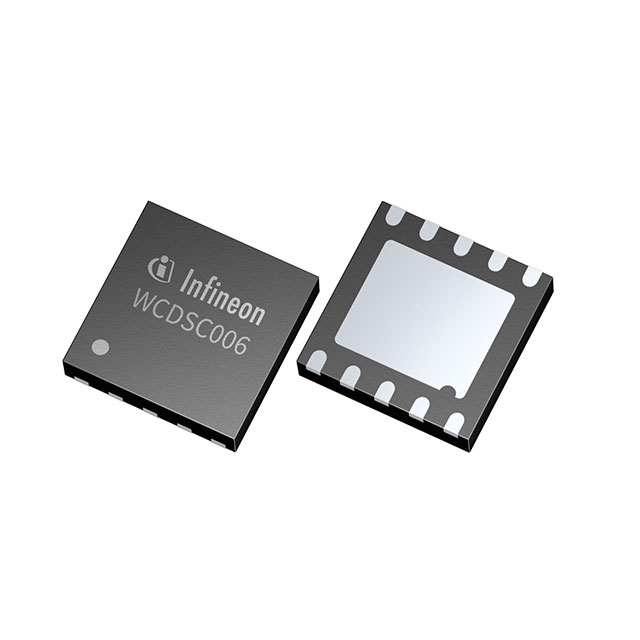

WCDSC006XUMA1

Active

Infineon Technologies

MOSFET DRIVER, -40 TO 125DEG C ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Infineon Technologies

MOSFET DRIVER, -40 TO 125DEG C ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	WCDSC006XUMA1

Applications	General Purpose
Current - Output / Channel [custom]	2 A
Current - Peak Output	2 A
Fault Protection	Current Limiting, UVLO, Shoot-Through
Interface	Logic, PWM
Load Type	Capacitive, Inductive, Resistive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	10-WDFN Exposed Pad
Rds On (Typ)	800 mOhm, 2 Ohm
Supplier Device Package	PG-WSON-10
Technology	Power MOSFET
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	4.75 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.75 V

Part	Voltage - Load [Max]	Voltage - Load [Min]	Load Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Current - Output / Channel [custom]	Rds On (Typ)	Supplier Device Package	Fault Protection	Current - Peak Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Technology
Infineon Technologies WCDSC006XUMA1	5.5 V	4.75 V	Capacitive Inductive Resistive	10-WDFN Exposed Pad	-40 °C	125 ¯C	Surface Mount	General Purpose	2 A	2 Ohm 800 mOhm	PG-WSON-10	Current Limiting Shoot-Through UVLO	2 A	4.75 V	5.5 V	Logic PWM	Power MOSFET

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver General Purpose Power MOSFET PG-WSON-10
