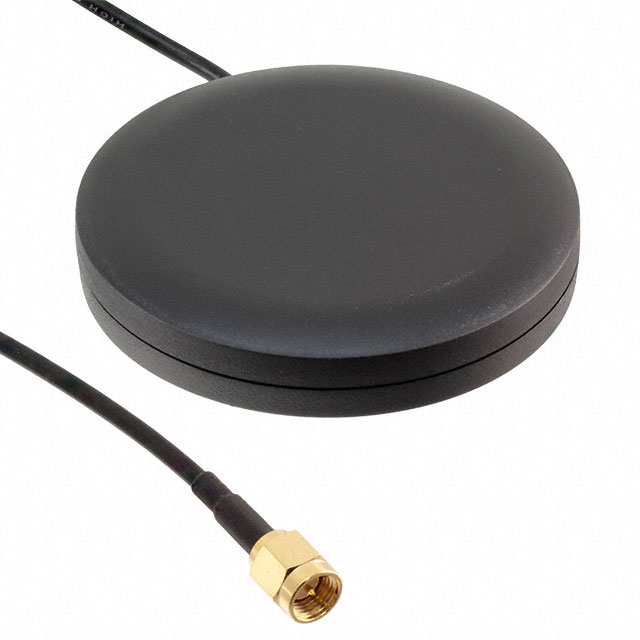

ALPHA15/2.5M/SMAM/S/S/26 - ALPHA15/2.5M/SMAM/S/S/26

ALPHA15/2.5M/SMAM/S/S/26

Active
Siretta Ltd

RF ANT 850/900MHZ PUCK SMA MALE

Deep-Dive with AI

DocumentsDatasheetWhat Parameters are Important for Cellular Antenna Evaluation?+1

Technical Specifications

Parameters and characteristics for this part

SpecificationALPHA15/2.5M/SMAM/S/S/26
ApplicationsUMTS, GSM, GPRS
Frequency (Center/Band)1.8 GHz, 900 MHz, 850 MHz, 1.9 GHz, 2.1 GHz
Gain2 dBic
Height (Max)14.5 mm
Height (Max) [Max]0.571 in
Mounting TypeAdhesive
Number of Bands [custom]5
RF Family/StandardCellular
VSWR2.5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 10$ 13.87

Description

General part information

ALPHA15 Series

RF ANTENNA GPRS, GSM, UMTS Puck SMA Male Adhesive
