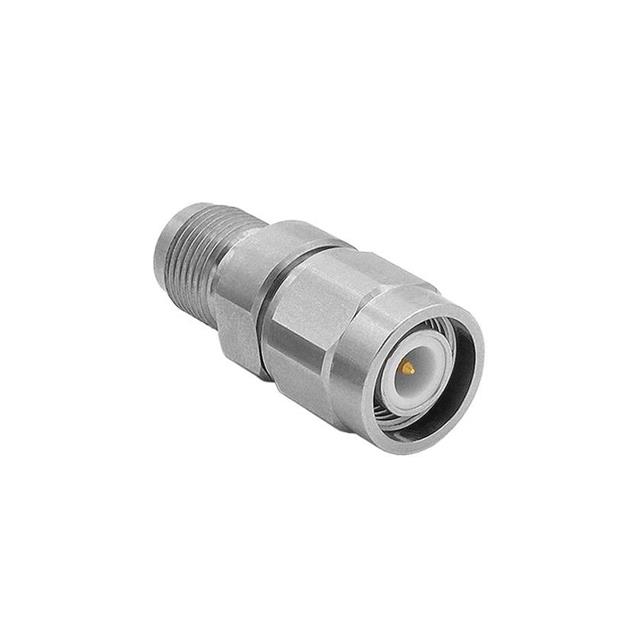

RFAATNCPTNCP

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, TNC, PLUG, TNC, PLUG, STRAIGHT ADAPTER, 50 OHM

Search across all available documentation for this part.

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, TNC, PLUG, TNC, PLUG, STRAIGHT ADAPTER, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	RFAATNCPTNCP

Adapter Series	TNC to TNC
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Male to Male
Conversion Type	Same Series
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Conversion Type	Impedance	Convert To (Adapter End)	Body Material	Mounting Type	Adapter Series	Center Contact Material	Center Gender	Mating Cycles	Dielectric Material	Adapter Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)
BULGIN LIMITED RFAATNCPTNCP	11 GHz	Same Series	50 Ohms	Male Pin TNC Plug	Stainless Steel	Free Hanging (In-Line)	TNC to TNC	Beryllium Copper	Male to Male	500	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Plug to Plug	Straight	-65 ░C	165 °C
BULGIN LIMITED RFAATNCJTNCJ	11 GHz	Same Series	50 Ohms	Female Socket TNC Jack	Stainless Steel	Free Hanging (In-Line)	TNC to TNC	Beryllium Copper	Female to Female	500	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Jack to Jack	Straight	-65 ░C	165 °C	TNC Jack Female Socket
BULGIN LIMITED RFAATNCJTNCP	11 GHz	Same Series	50 Ohms	Male Pin TNC Plug	Stainless Steel	Free Hanging (In-Line)	TNC to TNC	Beryllium Copper		500	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Plug to Jack	Straight	-65 ░C	165 °C	TNC Jack Female Socket
BULGIN LIMITED RFAATNCPNJ	11 GHz	Between Series	50 Ohms	Male Pin TNC Plug	Stainless Steel	Free Hanging (In-Line)	N to TNC	Beryllium Copper		500	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Plug to Jack	Straight	-65 ░C	165 °C	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 103.00
Newark	Each	1	$ 160.39

General part information

Adapter Coaxial Connector TNC Plug, Male Pin To TNC Plug, Male Pin 50 Ohms
