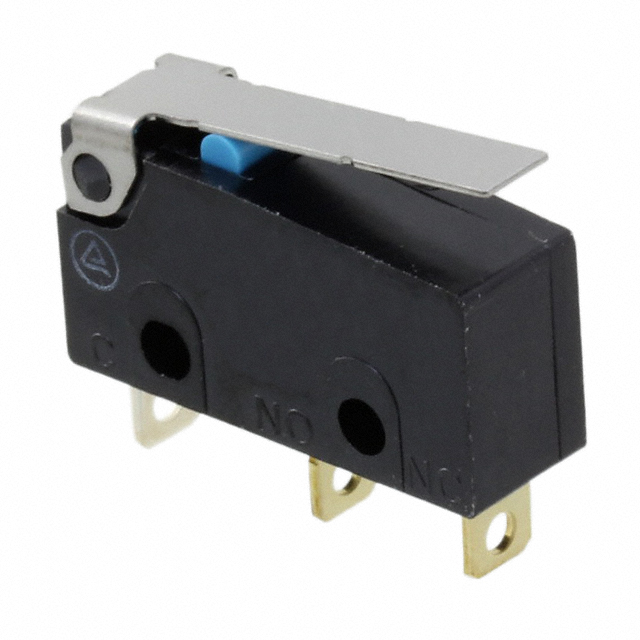

SSG-01L1-3H

Active

Omron Electronics Inc-EMC Div

SWITCH SNP ACT SPST-NO 0.1A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNP ACT SPST-NO 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Operating Position	Operating Position	Mechanical Life	Overtravel	Overtravel	Mounting Type	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Ingress Protection	Release Force	Electrical Life	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Differential Travel	Differential Travel	Actuator Type	Operating Position [custom]	Operating Position [custom]	Pretravel	Pretravel
Omron Electronics Inc-EMC Div SSG-01L1-3H	125 V	8.8 mm	0.345 in	10000000 Cycles	0.04 in	1 mm	Chassis Mount	Off-Mom	SPST-NO	125 °C	-25 °C	61 gf	IP40	6.118 gf	200000 Cycles	30 V	Solder Lug	100 mA	0.8 mm	0.031 "	Lever Straight
Omron Electronics Inc-EMC Div SSG01L23H	125 V			10000000 Cycles	0.04 in	1 mm	Chassis Mount	Off-Mom	SPST-NO	125 °C	-25 °C	61 gf	IP40	6.118 gf	200000 Cycles	30 V	Solder Lug	100 mA	0.8 mm	0.031 "	Lever Roller	0.571 in	14.5 mm
Omron Electronics Inc-EMC Div SSG-01H-5	125 V	8.4 mm	0.33 in	10000000 Cycles	0.015 "	0.4 mm	Chassis Mount	On-Mom	SPDT	125 °C	-25 °C	51 gf	IP40	4.079 gf	200000 Cycles	30 V	Solder Lug	100 mA	0.1 mm	0.004 in	Round (Pin Plunger)			0.024 in	0.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.20

General part information

Switch SPST-NO Chassis Mount
