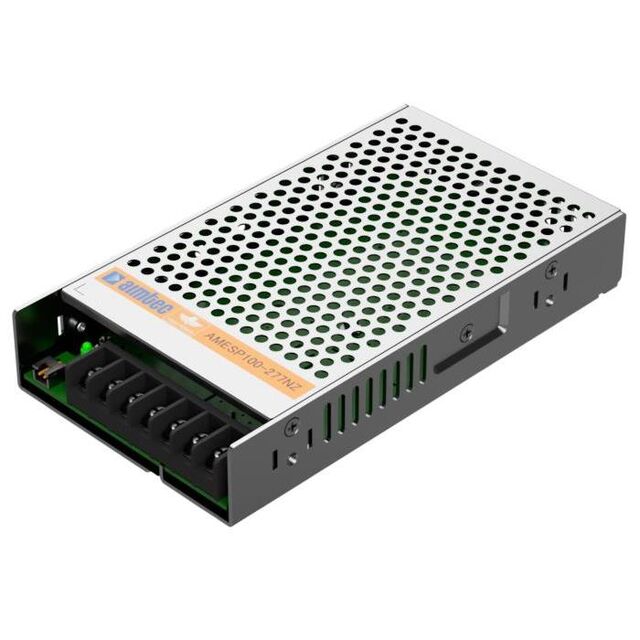

AMESP100-12S277NZ-P
Obsoleteaimtec
POWER SUPPLY: SWITCHING; FOR BUILDING IN; 102W; 8.5A; 179X99X30MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMESP100-12S277NZ-P
Obsoleteaimtec
POWER SUPPLY: SWITCHING; FOR BUILDING IN; 102W; 8.5A; 179X99X30MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMESP100-12S277NZ-P |
|---|---|
| Applications | ITE (Commercial) |
| Efficiency | 85 % |
| Features | PFC, Universal Input, Adjustable Output, DC Input Capable, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 102 W |
| Size / Dimension [x] | 7.05 in |
| Size / Dimension [x] | 179.1 mm |
| Size / Dimension [y] | 3.9 in |
| Size / Dimension [y] | 99.1 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 305 VAC, 430 VDC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| TME | N/A | 1 | $ 102.98 | |
| 5 | $ 99.93 | |||
| 25 | $ 97.63 | |||
| 100 | $ 96.12 | |||
Description
General part information
amesp100-277nz Series
Enclosed AC DC Converters 1 Output 12V 85 ~ 305 VAC, 120 ~ 430 VDC Input
