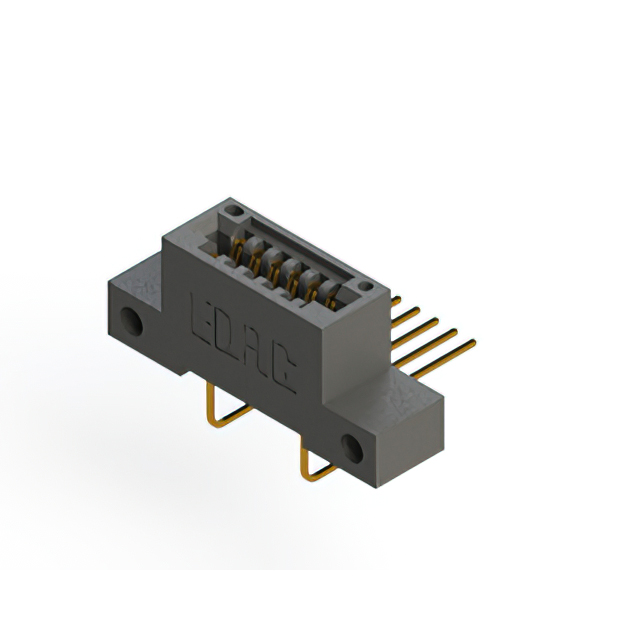

895-012-558-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-012-558-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-012-558-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-012 Series
...
| Part | Termination | Color | Number of Positions | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Card Type | Contact Material | Number of Rows | Termination Rows | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Contact Finish | Material - Insulation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Black | 12 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole | 125 °C | -40 °C | Female | ||||||
EDAC Inc. | Solder | Black | 12 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole | 125 °C | -40 °C | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | |||
EDAC Inc. | Solder | Black | 12 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Board Edge Straddle Mount | 125 °C | -40 °C | Female | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Card Extender | ||
EDAC Inc. | Wire Wrap | Black | 12 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | Non Specified - Single Edge | Copper Alloy | 1 | 1 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole | 125 °C | -40 °C | Female | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Solder | Black | 12 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | 125 °C | -40 °C | Female | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | |||
EDAC Inc. | Solder | Black | 12 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | Non Specified - Single Edge | Copper Alloy | 1 | 1 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole | 125 °C | -40 °C | Female | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Wire Wrap | Black | 12 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | Non Specified - Single Edge | Copper Alloy | 1 | 1 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole | 125 °C | -40 °C | Female | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | |||
EDAC Inc. | Solder | Black | 12 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | 125 °C | -40 °C | Female | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | |||
EDAC Inc. | Solder | Black | 12 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | 125 °C | -40 °C | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Wire Wrap | Black | 12 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Polyphenylene Sulfide (PPS) | Through Hole | 125 °C | -40 °C | Female | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
