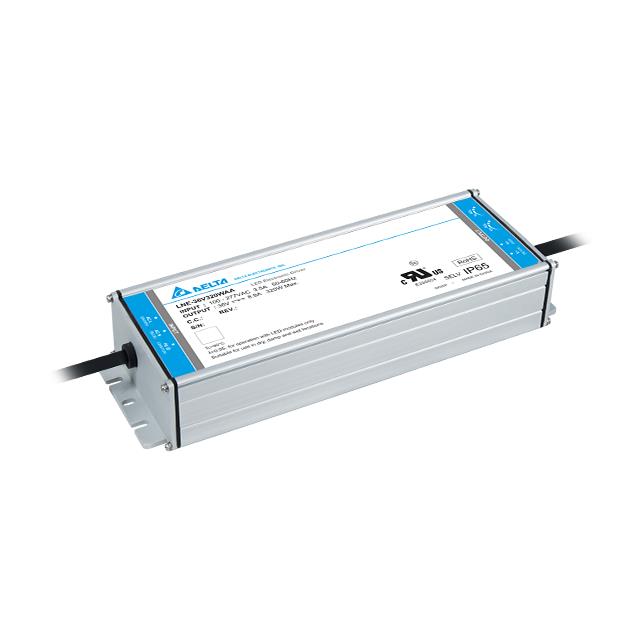

LNE-36V320WDAA

Active

Delta Electronics

LED DRVR CC/CV AC/DC 36V 8.9A

Search across all available documentation for this part.

Active

Delta Electronics

LED DRVR CC/CV AC/DC 36V 8.9A

Technical Specifications

Parameters and characteristics for this part

Part	Type	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Topology	Efficiency	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]	Number of Outputs	Features	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Standard Number	Voltage - Isolation	Ratings	Dimming	Weight	Weight	Size / Dimension [y]	Size / Dimension [z]
Delta Electronics LNE-36V320WDAA	Constant Current Voltage	90 VAC	-40 °C	70 °C	Wire Leads	AC DC Converter	94.5 %	305 VAC	320 W	36 V	18 V	8.9 A	1	OCP OTP OVP SCP	UL	252 mm	1.72 in	9.92 in	89.9 mm	3.54 in	43.7 mm	Chassis Mount	50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384	3.85 kV	IP67	Analog PWM
Delta Electronics LNE-36V150WDAA	Constant Current Voltage	90 VAC	-40 °C	70 °C	Wire Leads	AC DC Converter	93 %	305 VAC	150 W	36 V	18 V	4.2 A	1	OCP OTP OVP SCP	UL	204 mm	1.53 in	8.03 "		2.68 "		Chassis Mount	50581 60950-1 8750	3.85 kV	IP67	Analog PWM	2.4 lbs	1.1 kg	68 mm	38.8 mm
Delta Electronics LNE-36V150WAAA	Constant Current Voltage	90 VAC	-40 °C	70 °C	Wire Leads	AC DC Converter	93 %	305 VAC	150 W	36 V	18 V	4.2 A	1	OCP OTP OVP SCP	UL	204 mm	1.53 in	8.03 "		2.68 "		Chassis Mount	50581 60950-1 8750	3.85 kV	IP65		2.4 lbs	1.1 kg	68 mm	38.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	16	$ 145.86

General part information

8.9A 18 ~ 36V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
