C1135.41.01

Active

Prysmian Group

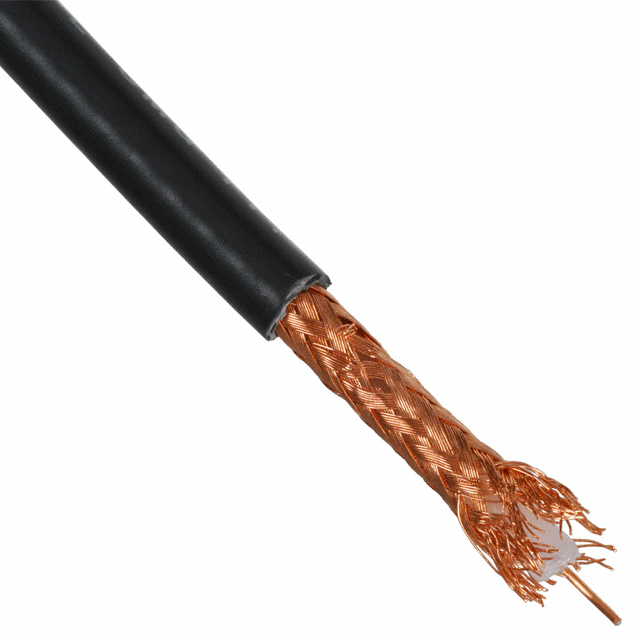

CABLE COAXIAL RG59 22AWG 1000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAXIAL RG59 22AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C1135.41.01

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.146 "
Dielectric Diameter [diameter]	3.71 mm
Dielectric Material	Solid Polyethylene (PE)
Impedance	80 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video, RF Signal
VoP, Velocity of Propagation	78

Part	Usage	Shield Type	Cable Group	Length	Length	Conductor Strand	Jacket (Insulation) Material	Cable Type	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Impedance	Conductor Material	Shield Material	Shield Coverage	VoP, Velocity of Propagation
Prysmian Group C1135.41.01	RF Signal Video	Braid	RG-59	304.8 m	1000 ft	Solid	Poly-Vinyl Chloride (PVC)	Coaxial	Solid Polyethylene (PE)	0.146 "	3.71 mm	Black	80 Ohms	Copper Coated Steel	Copper Bare	95 %	78

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 22 AWG (0.32mm²) RG-59 1000.0' (304.80m) 80 Ohms
