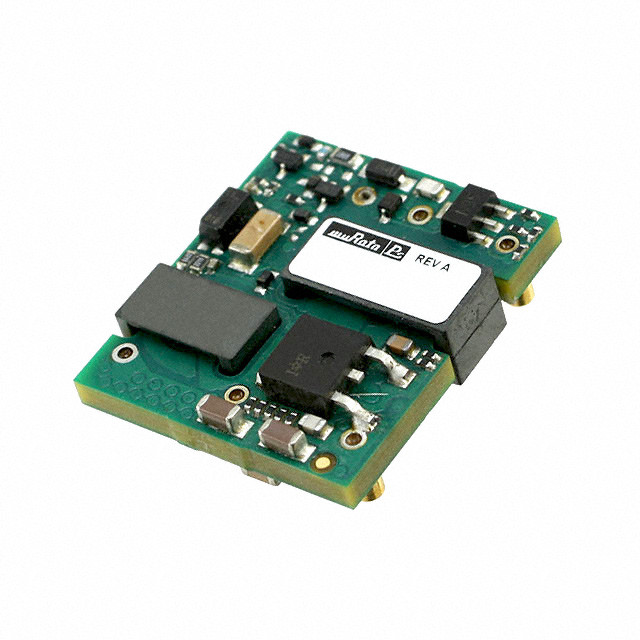

UEI15-033-Q48PM-C

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 15W

Search across all available documentation for this part.

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Power (Watts)	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Current - Output (Max) [Max]	Number of Outputs	Applications	Type	Voltage - Isolation	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1	Voltage - Input (Min) [Min]
Murata Power Solutions Inc. UEI15-033-Q12NM-C	Surface Mount	15 W	36 V	0.32 "	24.4 mm	8.1 mm	0.96 in	1.1 "	27.9 mm	6-SMD Module	4.5 A	1	ITE (Commercial)	Isolated Module	2250 VDC	89 %	85 °C	-40 °C	OCP OTP OVP SCP UVLO	3.3 V	9 V
Murata Power Solutions Inc. UEI15-033-Q48PM-C	Surface Mount	15 W	75 V	0.32 "	24.4 mm	8.1 mm	0.96 in	1.1 "	27.9 mm	6-SMD Module	5 A	1	ITE (Commercial)	Isolated Module	2250 VDC	88.8 %	85 °C	-40 °C	OCP OTP OVP SCP UVLO	3.3 V	18 V
Murata Power Solutions Inc. UEI15-033-Q12N-C	Through Hole	15 W	36 V	0.32 "	24.4 mm	8.1 mm	0.96 in	1.1 "	27.9 mm	6-DIP Module	4.5 A	1	ITE (Commercial)	Isolated Module	2250 VDC	89 %	85 °C	-40 °C	OCP OTP OVP SCP UVLO	3.3 V	9 V
Murata Power Solutions Inc. UEI15-033-Q48N-C	Through Hole	15 W	75 V	0.32 "	24.4 mm	8.1 mm	0.96 in	1.1 "	27.9 mm	6-DIP Module	5 A	1	ITE (Commercial)	Isolated Module	2250 VDC	88.8 %	85 °C	-40 °C	OCP OTP OVP SCP UVLO	3.3 V	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 30.82

General part information

Isolated Module DC DC Converter 1 Output 3.3V 5A 18V - 75V Input
