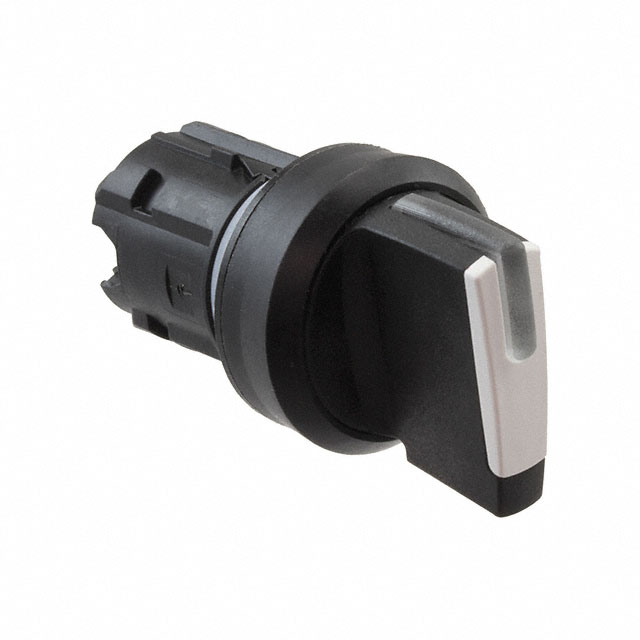

45-2816.1C90.003

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	45-2816.1C90.003

(Select First, Then Apply Filters) Compatible Series	45, EAO
Actuator Type	Selector
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Momentary, Maintained

Part	(Select First, Then Apply Filters) Compatible Series	Illumination	Actuator Type	Panel Cutout Dimensions	Requires	Type
EAO 45-2816.1C50.003	45 EAO	Non-Illuminated	Selector	22.3 mm	Contact Block(s)	Maintained Momentary
EAO 45-2816.2C50.003	45 EAO	Non-Illuminated	Selector	22.3 mm	Contact Block(s)	Maintained Momentary
EAO 45-2816.2D90.003	45 EAO	Non-Illuminated	Selector	22.3 mm	Contact Block(s)	Maintained Momentary
EAO 45-2816.2C90.003	45 EAO	Non-Illuminated	Selector	22.3 mm	Contact Block(s)	Maintained Momentary
EAO 45-2816.3C40.003	45 EAO	Non-Illuminated	Selector	22.3 mm	Contact Block(s)	Maintained Momentary
EAO 45-2816.3C60.003	45 EAO	Non-Illuminated	Selector	22.3 mm	Contact Block(s)	Maintained Momentary
EAO 45-2816.3C90.003	45 EAO	Non-Illuminated	Selector	22.3 mm	Contact Block(s)	Maintained Momentary
EAO 45-2816.1C90.003	45 EAO	Non-Illuminated	Selector	22.3 mm	Contact Block(s)	Maintained Momentary

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Selector Non-Illuminated
