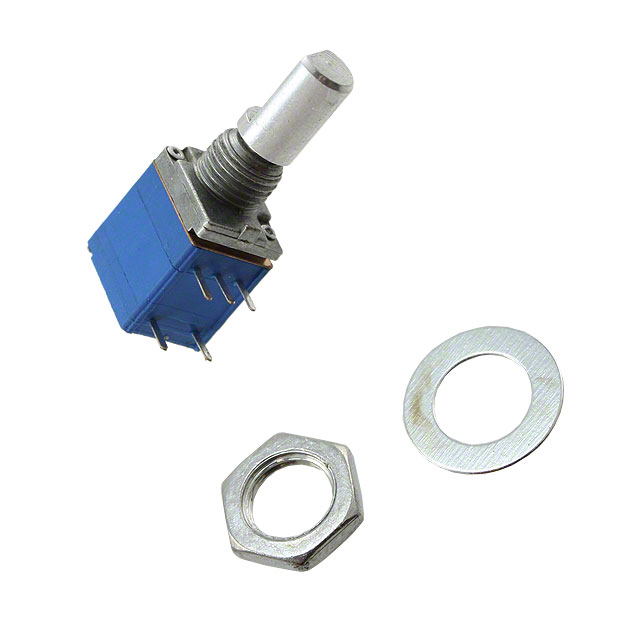

ACZ09BR1E-15FA1-30C15P

Active

CUI Devices

ROTARY ENCODER INCREMENT 15PPR

Search across all available documentation for this part.

Active

CUI Devices

ROTARY ENCODER INCREMENT 15PPR

Technical Specifications

Parameters and characteristics for this part

Specification	ACZ09BR1E-15FA1-30C15P

Actuator Type	Flatted End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Incremental
Mounting Type	PCB Through Hole, Panel
Orientation	Right Angle
Output Type	Quadrature (Incremental)
Pulses per Revolution	15
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

Part	Pulses per Revolution	Termination Style	Encoder Type	Mounting Type	Orientation	Rotational Life (Cycles Min) [Min]	Actuator Type [diameter]	Actuator Type	Output Type
CUI Devices ACZ09BR1E-20FD1-20C10P	10	PC Pin	Incremental	Panel PCB Through Hole	Vertical	30K	6 mm	Flatted End	Quadrature (Incremental)
CUI Devices ACZ09BR1E-15FA1-30C15P	15	PC Pin	Incremental	Panel PCB Through Hole	Right Angle	30K	6 mm	Flatted End	Quadrature (Incremental)
CUI Devices ACZ09BR1E-20FD1-20C	20	PC Pin	Incremental	Panel PCB Through Hole	Vertical	30K	6 mm	Flatted End	Quadrature (Incremental)
CUI Devices ACZ09BR1E-15KQA1-30C15P	15	PC Pin	Incremental	Panel PCB Through Hole	Right Angle	30K	6 mm	Knurled End	Quadrature (Incremental)
CUI Devices ACZ09BR1E-20KQD1-20C	20	PC Pin	Incremental	Panel PCB Through Hole	Vertical	30K	6 mm	Knurled End	Quadrature (Incremental)
CUI Devices ACZ09BR1E-15KQA1-20C	20	PC Pin	Incremental	Panel PCB Through Hole	Right Angle	30K	6 mm	Knurled End	Quadrature (Incremental)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1020	$ 2.35

General part information

Rotary Encoder Incremental 15 Quadrature (Incremental) Right Angle
