SS-7026-NF

Active

BEL MAGNETIC SOLUTIONS

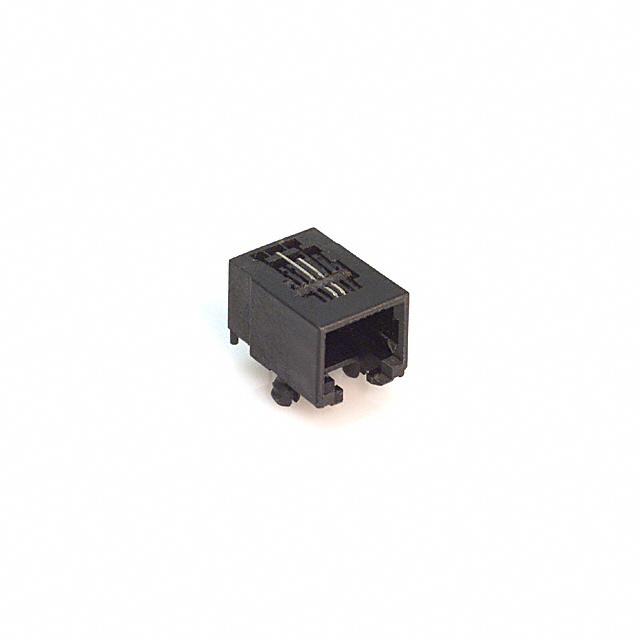

CONN MOD JACK 6P2C R/A SHIELDED

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 6P2C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-7026-NF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6, 2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Housing Material	Tab Direction	Orientation	Number of Positions/Contacts	Number of Ports	Contact Material	LED Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Mounting Type
BEL MAGNETIC SOLUTIONS SS-7026-NF	Shielded	0.76 Ám	30 Áin	Jack	1	Thermoplastic	Down	90 °	2 6	1	Copper Alloy	Does Not Contain LED	Solder	85 °C	-40 °C	Gold	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1681	$ 0.38

General part information

Jack Modular Connector 6p2c (RJ11) 90° Angle (Right) Shielded

Technical documentation and resources

No documents available
