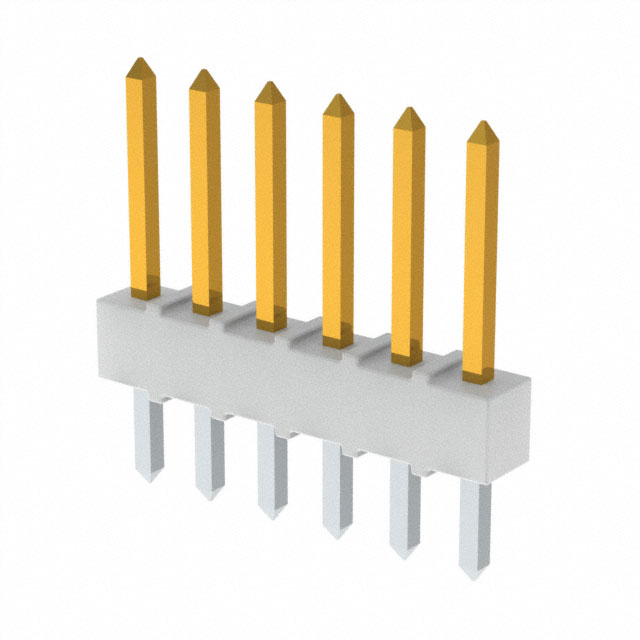

0022102061

Active

Molex

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022102061

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	White
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.22 mm
Overall Contact Length	0.56 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

002210 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Termination	Contact Finish - Post	Insulation Color	Overall Contact Length	Overall Contact Length	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions	Applications	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Pitch - Mating	Pitch - Mating	Style	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Rows	Shrouding	Contact Type	Insulation Material	Insulation Height	Insulation Height	Overall Contact Length	Number of Positions
Molex 0022102131	2.54 µm	100 µin	Header	Solder	Tin	White	14.22 mm	0.56 in	Push-Pull	All	0.51 µm	20 µin	Gold	13	Automotive General Purpose Medical Telecommunications	0.135 in	3.43 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	7.49 mm	0.295 in	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm
Molex 0022102074	2.54 µm	100 µin	Header	Solder	Tin	White	0.84 in		Push-Pull	All	0.51 µm	20 µin	Gold	7	Automotive General Purpose Medical Telecommunications	0.15 in	3.81 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	14.22 mm	0.56 "	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm	21.34 mm
Molex 0022102164	2.54 µm	100 µin	Header	Solder	Tin	White	0.84 in		Push-Pull	All	0.51 µm	20 µin	Gold		Automotive General Purpose Medical Telecommunications	0.15 in	3.81 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	14.22 mm	0.56 "	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm	21.34 mm	16
Molex 0022102111	2.54 µm	100 µin	Header	Solder	Tin	White	14.22 mm	0.56 in	Push-Pull	All	0.51 µm	20 µin	Gold	11	Automotive General Purpose Medical Telecommunications	0.135 in	3.43 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	7.49 mm	0.295 in	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm
Molex 0022102124	2.54 µm	100 µin	Header	Solder	Tin	White	0.84 in		Push-Pull	All	0.51 µm	20 µin	Gold	12	Automotive General Purpose Medical Telecommunications	0.15 in	3.81 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	14.22 mm	0.56 "	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm	21.34 mm
Molex 0022102042	2.54 µm	100 µin	Header	Solder	Tin	White	17.53 mm	0.69 in	Push-Pull	All	0.51 µm	20 µin	Gold	4	Automotive General Purpose Medical Telecommunications	0.125 in	3.18 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	11.05 mm	0.435 "	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm
Molex 0022102121	2.54 µm	100 µin	Header	Solder	Tin	White	14.22 mm	0.56 in	Push-Pull	All	0.51 µm	20 µin	Gold	12	Automotive General Purpose Medical Telecommunications	0.135 in	3.43 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	7.49 mm	0.295 in	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm
Molex 0022102052	2.54 µm	100 µin	Header	Solder	Tin	White	17.53 mm	0.69 in	Push-Pull	All	0.51 µm	20 µin	Gold		Automotive General Purpose Medical Telecommunications	0.125 in	3.18 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	11.05 mm	0.435 "	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm
Molex 0022104028	2.54 µm	100 µin	Header	Solder	Tin	White	14.22 mm	0.56 in	Push-Pull	All	0.76 Ám	30 Áin	Gold	2	Automotive General Purpose Medical Telecommunications	0.135 in	3.43 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	7.49 mm	0.295 in	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm
Molex 0022102061	2.54 µm	100 µin	Header	Solder	Tin	White	14.22 mm	0.56 in	Push-Pull	All	0.51 µm	20 µin	Gold	6	Automotive General Purpose Medical Telecommunications	0.135 in	3.43 mm	Square	0.1 in	2.54 mm	Board to Board Cable	UL94 V-0	7.49 mm	0.295 in	Through Hole	1	Unshrouded	Male Pin	Nylon Polyamide (PA)	0.13 in	3.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.07
		10	$ 0.91
		100	$ 0.77
		500	$ 0.69
		1000	$ 0.66
		5000	$ 0.65

Description

General part information

002210 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources
