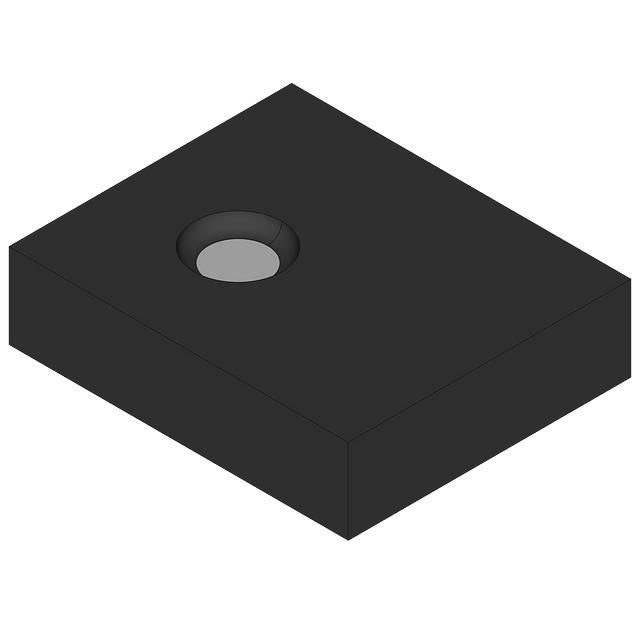

74AUP2G38GN,115

Active

Freescale Semiconductor - NXP

IC GATE NAND 2CH 2-INP 8XSON

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC GATE NAND 2CH 2-INP 8XSON

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP2G38GN,115

Current - Output High, Low	-
Current - Output High, Low	4 mA
Current - Quiescent (Max) [Max]	500 nA
Features	Open Drain
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.6 V
Logic Type	NAND Gate
Max Propagation Delay @ V, Max CL	12.7 ns
Mounting Type	Surface Mount
Number of Circuits	2
Number of Inputs	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-XFDFN
Supplier Device Package	8-XSON (1.2x1)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Part	Logic Type	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Features	Max Propagation Delay @ V, Max CL	Supplier Device Package	Number of Circuits	Current - Output High, Low	Current - Output High, Low	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Current - Quiescent (Max) [Max]	Number of Inputs	Mounting Type	Package / Case [y]	Package / Case [y]
Freescale Semiconductor - NXP 74AUP2G38GT,115	NAND Gate	2 V	1.6 V	Open Drain	12.7 ns	8-XSON SOT833-1 (1.95x1)	2	-	4 mA	125 °C	-40 °C	0.8 V	3.6 V	8-XFDFN	500 nA	2	Surface Mount
Freescale Semiconductor - NXP 74AUP2G38GN,115	NAND Gate	2 V	1.6 V	Open Drain	12.7 ns	8-XSON (1.2x1)	2	-	4 mA	125 °C	-40 °C	0.8 V	3.6 V	8-XFDFN	500 nA	2	Surface Mount
Freescale Semiconductor - NXP 74AUP2G38DC,125	NAND Gate	2 V	1.6 V	Open Drain	12.7 ns		2	-	4 mA	125 °C	-40 °C	0.8 V	3.6 V	8-VFSOP	500 nA	2	Surface Mount	2.3 mm	0.091 in
Freescale Semiconductor - NXP 74AUP2G38GS,115	NAND Gate	2 V	1.6 V	Open Drain	12.7 ns	8-XSON (1.35x1)	2	-	4 mA	125 °C	-40 °C	0.8 V	3.6 V	8-XFDFN	500 nA	2	Surface Mount
