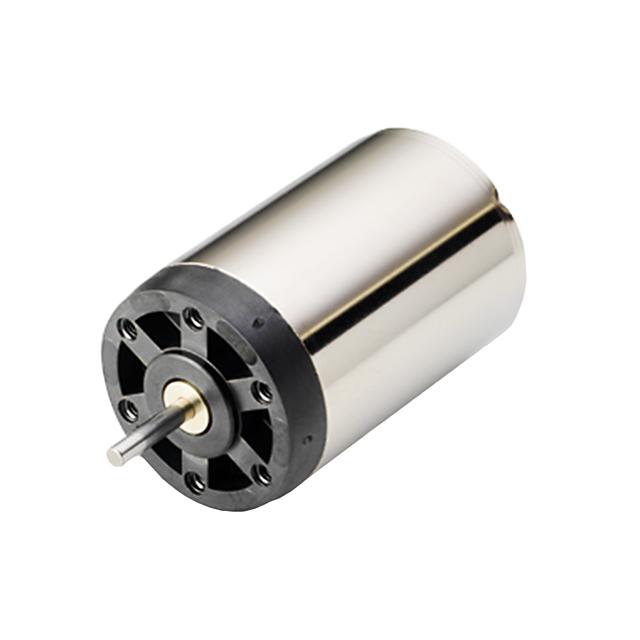

22V28-213E.201
ActivePortescap
STANDARD MOTOR 10000 RPM 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 22V28-213E.201 |
|---|---|
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Function | Standard |
| Length - Shaft and Bearing [x] | 10.2 mm |
| Length - Shaft and Bearing [x] | 0.402 " |
| Motor Type | Brushed |
| Mounting Hole Spacing | 17 mm |
| Mounting Hole Spacing | 0.669 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 4.2 W |
| RPM | 10000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 22 mm |
| Size / Dimension [diameter] | 0.866 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 8.48 mNm, 1.201 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 0.15 lbs |
| Weight | 68.04 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 74.61 | |
| 5 | $ 69.54 | |||
Description
General part information
22V28 Series
Brushed DC Motor Standard 10000 RPM 4.2W 12VDC
