CONN007

Obsolete

TE Connectivity Linx

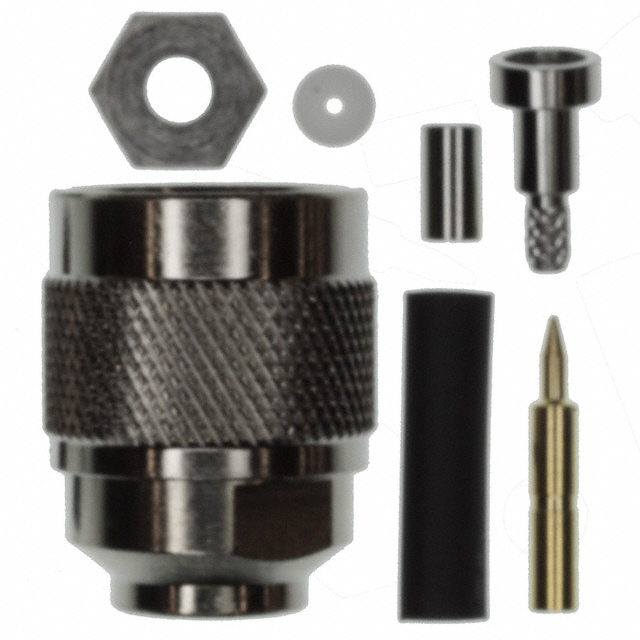

CONN N PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

CONN N PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CONN007

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Includes	Dielectric Material	Shield Termination	Number of Ports	Body Finish	Contact Termination	Impedance	Housing Color	Center Contact Plating	Connector Type	Mounting Type	Cable Group	Frequency - Max [Max]	Center Contact Material	Voltage Rating	Insertion Loss	Mating Cycles	Connector Style	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature
TE Connectivity Linx CONN012	1 Connector 1 End Cap 1 Ferrule	Polytetrafluoroethylene (PTFE)	Crimp	1	Nickel	Solder	50 Ohms	Silver	Gold	Male Pin Plug	Free Hanging (In-Line) Right Angle	RG-174	11 GHz	Brass	500 V	0.3 dB	500	N Type	Brass	-65 ░C	165 °C
TE Connectivity Linx CONN007	1 Connector 1 Contact 1 Ferrule	Polytetrafluoroethylene (PTFE)	Crimp	1	Nickel	Solder	50 Ohms	Silver	Gold	Male Pin Plug	Free Hanging (In-Line)	RG-174	11 GHz	Brass	500 V	0.3 dB	500	N Type	Brass	-65 ░C	165 °C
TE Connectivity Linx CONN005	1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	Crimp	1	Nickel	Solder	50 Ohms	Silver	Gold	Female Socket Receptacle		RG-174	11 GHz	Brass	500 V	0.3 dB	500	N Type	Brass	-65 ░C	165 °C	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
