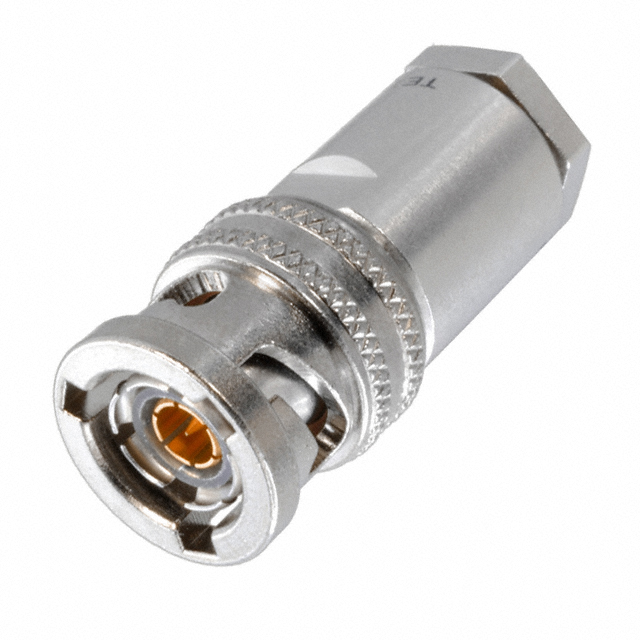

PL75-43

Active

Cinch Connectivity Solutions Trompeter

CONN TRB PLUG STR SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PL75-43

Body Finish	Nickel
Body Material	Brass
Cable Group	250-4045, 293-3930, Microdot 250-4044
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Solder
Fastening Type	Bayonet Lock
Features	Three Lug
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Wrench Clamp
Voltage Rating	400 V

PL75 Series

Part	Contact Termination	Cable Group	Shield Termination	Connector Type	Includes	Frequency - Max [Max]	Body Finish	Fastening Type	Center Contact Plating	Mounting Type	Number of Ports	Housing Color	Body Material	Impedance	Mating Cycles	Features	Voltage Rating	Center Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]
Cinch Connectivity Solutions Trompeter PL75-47BR	Solder	M17/176-00002	Wrench Clamp	Plug Male Pin (Concentric)	1 Connector 1 Strain Relief	500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75-24	Solder	Microdot 202-3934	Wrench Clamp	Plug Male Pin (Concentric)		500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75C-212	Crimp	Raychem 252E0114	Crimp	Plug Male Pin (Concentric)	1 Connector 1 Strain Relief	500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75C-307	Crimp	TRC-75-1	Crimp	Plug Male Pin (Concentric)	1 Connector 1 Heat Shrink 1 Strain Relief	500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75-29	Solder	TWC-124-1A TWC-78-1	Wrench Clamp	Plug Male Pin (Concentric)		500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75-43	Solder	250-4045 293-3930 Microdot 250-4044	Wrench Clamp	Plug Male Pin (Concentric)		500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75C-204	Crimp	Raychem 10602	Crimp	Plug Male Pin (Concentric)	1 Connector 1 Heat Shrink 1 Strain Relief	500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75MC-202	Crimp	TWC-78-1	Crimp	Plug Male Pin (Concentric)		500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75C-201	Crimp	M17/176-00002	Crimp	Plug Male Pin (Concentric)	1 Connector 1 Heat Shrink 1 Strain Relief	500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C
Cinch Connectivity Solutions Trompeter PL75C-301	Crimp	Grumman GC875GC1	Crimp	Plug Male Pin (Concentric)	1 Connector 1 Heat Shrink 1 Strain Relief	500 MHz	Nickel	Bayonet Lock	Gold	Free Hanging (In-Line)	1	Silver	Brass	Non-Constant	500	Three Lug	400 V	Beryllium Copper	TRB Twinaxial/Triaxial	-65 ░C	165 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 24.15

Description

General part information

PL75 Series

TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder
