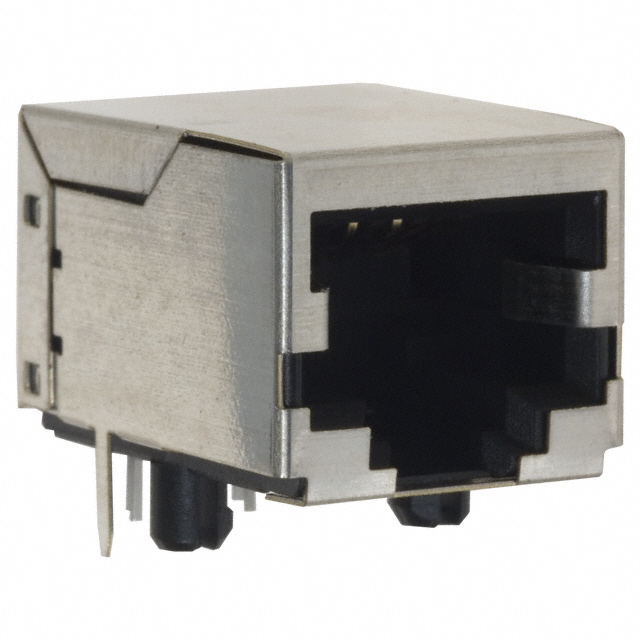

SS-7188S-A-NF-50
ActiveBEL MAGNETIC SOLUTIONS
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS-7188S-A-NF-50
ActiveBEL MAGNETIC SOLUTIONS
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-7188S-A-NF-50 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Ratings | Cat5e |
| Shielding | Shielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.51 | |
| 10 | $ 2.18 | |||
| 33 | $ 2.09 | |||
| 66 | $ 2.04 | |||
| 132 | $ 1.95 | |||
| 264 | $ 1.76 | |||
| 528 | $ 1.62 | |||
| 1023 | $ 1.39 | |||
| 2508 | $ 1.30 | |||
Description
General part information
SS-7188S Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5e
