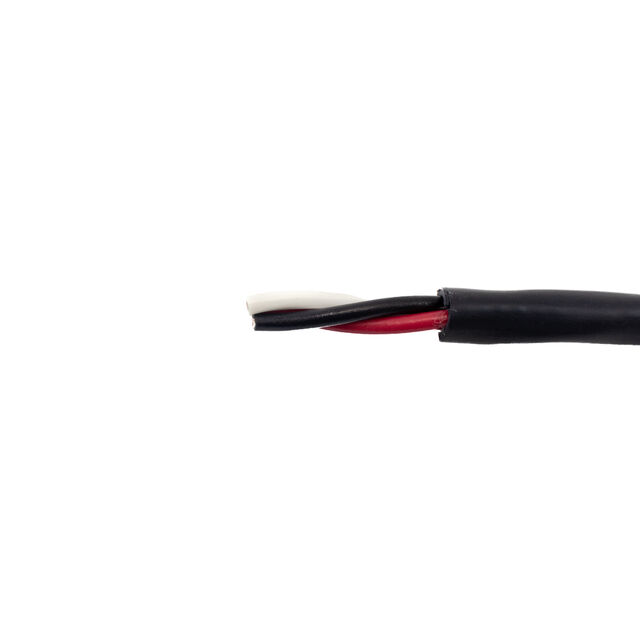

25062 OR199

Active

ALPHA WIRE

XTRA-GUARD 2

Search across all available documentation for this part.

Active

ALPHA WIRE

XTRA-GUARD 2

Technical Specifications

Parameters and characteristics for this part

Specification	25062 OR199

null

Part	Conductor Material	Ratings	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Voltage	Length	Length	Jacket Color	Number of Conductors	Wire Gauge	Cable Type
ALPHA WIRE 25062 OR199
ALPHA WIRE 25062 SL199	Copper Tinned	ISO 10993 UL Style 20668	Poly-Vinyl Chloride (PVC)	16	30 AWG	Biological Compatibility Rip Cord	-30 ░C	90 °C	5.74 mm	0.226 in	Polyurethane (PU)	300 V	1000 ft	304.8 m	Slate	2	18 AWG	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.90

General part information

Conductor Cable
