50.632 PA/SWL

Active

Jacob GmbH

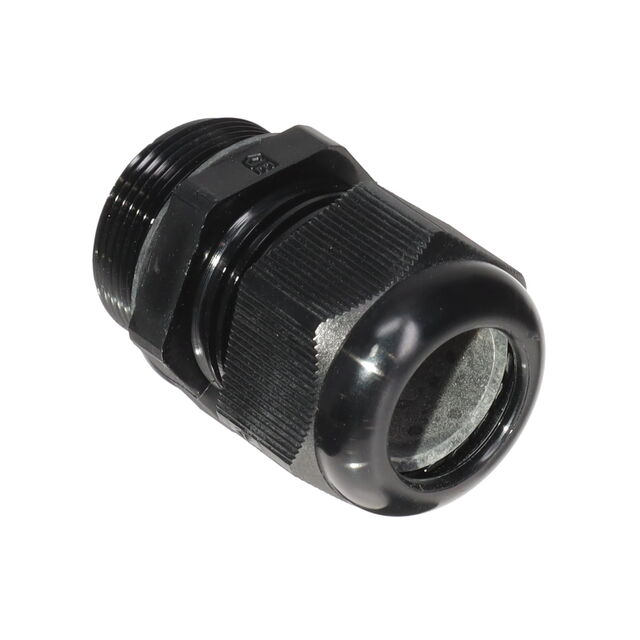

CABLE GLAND 15-21MM M32 POLYAMID

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 15-21MM M32 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	50.632 PA/SWL

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in
Outside Cable Diameter (Min) [Min] [diameter]	0.591 "
Outside Cable Diameter (Min) [Min] [diameter]	15 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M32x1.5
Type	Cable Gland

Part	Color	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]
Jacob GmbH 50.632 ES	Silver	8 mm	0.315 in	Cable Gland	14 mm	0.551 in	Stainless Steel	IP68 - Dust Tight Waterproof	O-Ring Seal	0.787 "	20 mm	M32x1.5	100 °C	-40 °C
Jacob GmbH 50.632 PA/SWL	Black	15 mm	0.591 in	Cable Gland	15 mm	0.591 "		IP68 - Dust Tight Waterproof	Sealing Ring	0.827 in	21 mm	M32x1.5	100 °C	-40 °C
Jacob GmbH 50.632 M	Silver	8 mm	0.315 in	Cable Gland	14 mm	0.551 in	Brass Nickel Plated	IP68 - Dust Tight Waterproof	O-Ring Seal	0.787 "	20 mm	M32x1.5	100 °C	-40 °C
Jacob GmbH 50.632 M/EMVD	Silver	8 mm	0.315 in	Cable Gland	14 mm	0.551 in	Brass Nickel Plated	IP68 - Dust Tight Waterproof	O-Ring Seal	0.787 "	20 mm	M32x1.5	100 °C	-40 °C
Jacob GmbH 50.632 PA/SW	Black	10 mm	0.394 in	Cable Gland	15 mm	0.591 "		IP68 - Dust Tight Waterproof	Sealing Ring	0.827 in	21 mm	M32x1.5	100 °C	-40 °C
Jacob GmbH 50.632 PA/RSW	Black	10 mm	0.394 in	Cable Gland	12 mm	0.472 in		IP68 - Dust Tight Waterproof	Sealing Ring	0.827 in	21 mm	M32x1.5	100 °C	-40 °C
Jacob GmbH 50.632 PA7001	Gray	10 mm	0.394 in	Cable Gland	15 mm	0.591 "		IP68 - Dust Tight Waterproof	Sealing Ring	0.827 in	21 mm	M32x1.5	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M32x1.5 Black
