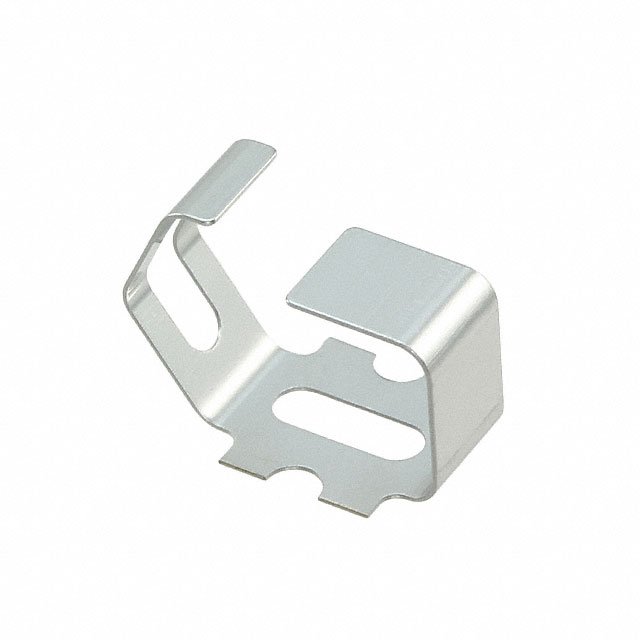

S1951-46R - S1951-46R

S1951-46R

Active
Harwin Inc.

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetS1741-46R+4
S1951-46R - S1951-46R

S1951-46R

Active
Harwin Inc.

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetS1741-46R+4

Technical Specifications

Parameters and characteristics for this part

SpecificationS1951-46R
Attachment MethodSolder
Height [z]7.25 mm
Height [z]0.285 "
Length9.59 mm
Length0.378 in
MaterialBeryllium Copper
PlatingTin
Plating - Thickness [custom]118.11 µin
Plating - Thickness [custom]3 µm
TypeShield Finger
Width [y]5.7 mm
Width [y]0.224 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.59
10$ 0.52
25$ 0.49
100$ 0.40
Digi-Reel® 1$ 0.59
10$ 0.52
25$ 0.49
100$ 0.40
Tape & Reel (TR) 350$ 0.37
700$ 0.32
1050$ 0.25
2450$ 0.23
8750$ 0.21
17500$ 0.20
35000$ 0.20
NewarkEach (Supplied on Cut Tape) 1$ 1.06
10$ 0.64
100$ 0.41

Description

General part information

S1951 Series

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS ROHS COMPLIANT: YES
