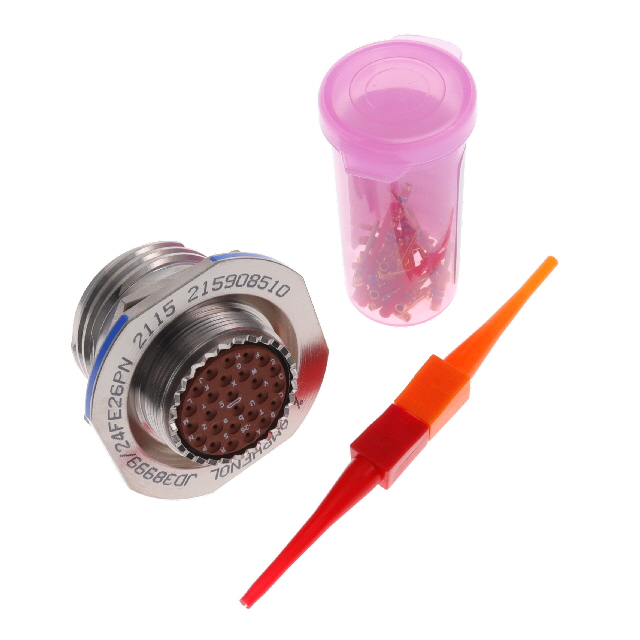

D38999/24FE26PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 26POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24FE26PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 26POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24FE26PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	26
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

D38999/24FE Series

Part	Contact Finish - Mating	Qualification	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Color	Shell Size, MIL	Shielding	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Primary Material	Shell Finish	Grade	Number of Positions	Termination	Shell Material	Orientation	Shell Size - Insert	Note	Contact Size	Housing Color	Type	Includes	Contact Shape	Contact Type	Features	Insert Material	Contact Size	Current Rating (Amps)
Amphenol Aerospace Operations D38999/24FE26PN	Gold	MIL-DTL-38999 Series III	Male Pins Receptacle	-65 ░C	200 °C	Aerospace Aviation Marine Military	1.27 µm	50 µin	Bulkhead - Front Side Nut	Silver	E	Shielded	Copper Alloy	17	26	Environment Resistant	Metal	Electroless Nickel	Military	26	Crimp	Aluminum	N
Amphenol Aerospace Operations D38999/24FE6HN	Gold	MIL-DTL-38999 Series III	Male Pins Receptacle	-65 ░C	200 °C	Aviation Marine Military	2.54 çm	100 çin	Bulkhead - Front Side Nut	Silver	E	Shielded	Copper Alloy			Environment Resistant	Metal	Electroless Nickel	Military	6	Crimp	Aluminum	N	17-6
Amphenol Aerospace Operations D38999/24FE2PA	Gold	MIL-DTL-38999 Series III	Male Pins Receptacle	-65 ░C	200 °C	Aviation Marine Military	1.27 µm	50 µin	Bulkhead - Front Side Nut	Silver	E	Shielded	Copper Alloy			Environment Resistant	Metal	Electroless Nickel	Military	1 38	Crimp	Aluminum	A	17-2
Amphenol Aerospace Operations D38999/24FE35PN-LC		MIL-DTL-38999 Series III	Receptacle Housing	-65 ░C	200 °C				Bulkhead - Front Side Nut		E	Shielded		17	35	Environment Resistant		Electroless Nickel	Military	55 positions		Aluminum	N		Contacts Not Included	22D	Silver	For Male Pins	1 Connector 1 Nut 1 O-Ring	Circular	Crimp
Amphenol Aerospace Operations D38999/24FE26SN	Gold	MIL-DTL-38999 Series III	Receptacle Female Sockets	-65 ░C	200 °C	Aerospace Aviation Marine Military	1.27 µm	50 µin	Bulkhead - Front Side Nut	Silver	E	Shielded	Copper Alloy	17	26	Environment Resistant	Metal	Electroless Nickel	Military	26	Crimp	Aluminum	N									Self Locking	Thermoplastic
Amphenol Aerospace Operations D38999/24FE6SN-LC		MIL-DTL-38999 Series III	Receptacle Housing	-65 ░C	200 °C				Bulkhead - Front Side Nut		E	Shielded				Environment Resistant		Electroless Nickel	Military	6		Aluminum	N	17-6	Contacts Not Included		Silver	For Female Sockets		Circular	Crimp			12
Amphenol Aerospace Operations D38999/24FE35SA-LC		MIL-DTL-38999 Series III	Receptacle Housing	-65 ░C	200 °C				Bulkhead - Front Side Nut		E	Shielded		17	35	Environment Resistant		Electroless Nickel	Military	55 positions		Aluminum	A		Contacts Not Included	22D	Silver	For Female Sockets		Circular	Crimp
Amphenol Aerospace Operations D38999/24FE99SA	Gold	MIL-DTL-38999 Series III	Receptacle Female Sockets	-65 ░C	200 °C	Aerospace Aviation Marine Military	1.27 µm	50 µin	Bulkhead - Front Side Nut	Silver	E	Shielded	Copper Alloy	17	99	Environment Resistant	Metal	Electroless Nickel	Military	23	Crimp	Aluminum	A												7.5 A 13 A
Amphenol Aerospace Operations D38999/24FE8SN-LC		MIL-DTL-38999 Series III	Receptacle Housing	-65 ░C	200 °C				Bulkhead - Front Side Nut		E	Shielded				Environment Resistant		Electroless Nickel	Military	8		Aluminum	N	17-8	Contacts Not Included		Silver	For Female Sockets		Circular	Crimp			16
Amphenol Aerospace Operations D38999/24FE2PB	Gold	MIL-DTL-38999 Series III	Male Pins Receptacle	-65 ░C	200 °C	Aviation Marine Military	1.27 µm	50 µin	Bulkhead - Front Side Nut	Silver	E	Shielded	Copper Alloy			Environment Resistant	Metal	Electroless Nickel	Military	1 38	Crimp	Aluminum	B	17-2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 64.47
		10	$ 62.39
		25	$ 60.45
		50	$ 59.51
		100	$ 56.06
		250	$ 55.26
		500	$ 53.00
		1000	$ 51.58
	Bulk	1	$ 333.54
		10	$ 262.10
		25	$ 239.59

Description

General part information

D38999/24FE Series

26 Position Circular Connector Receptacle, Male Pins Crimp
