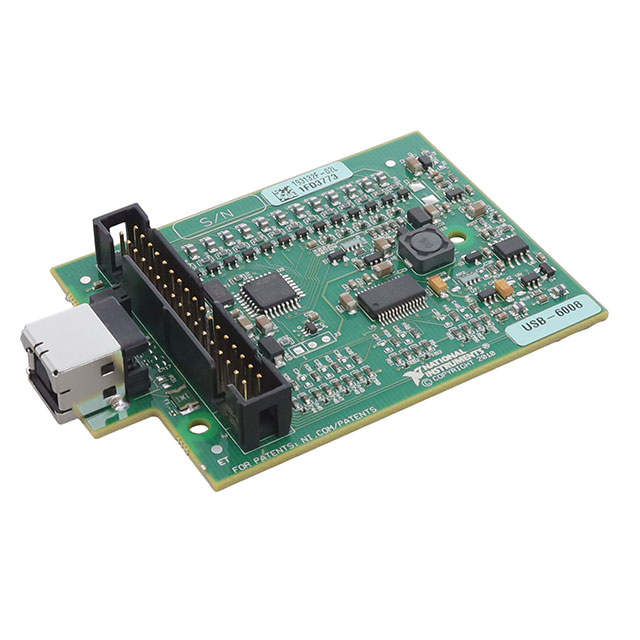

193132-02

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Search across all available documentation for this part.

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	193132-02

Bidirectional Channels	8
Bus Connection	USB 2.0
Counter/Timers	1
Front Connection	Screw Terminal
Function	Multifunction I/O
Input Range	10 V
Input Resolution	12 Bits
Number of Inputs and Type [custom]	8
Number of Inputs and Type [custom]	8
Number of Inputs and Type [custom]	4
Number of Outputs and Type [custom]	2
Number of Outputs and Type [custom]	8
Output Range [Max]	5 V
Output Range [Min]	0 V
Output Resolution	12 Bits
Type	DAQ Device

Part	Counter/Timers	Front Connection	Type	Input Resolution	Bus Connection	Output Resolution	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Bidirectional Channels	Input Range	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Output Range [Max]	Output Range [Min]	Function
NI 193132-02	1	Screw Terminal	DAQ Device	12 Bits	USB 2.0	12 Bits	8	8	4	8	10 V	2	8	5 V	0 V	Multifunction I/O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 524.25

General part information

Multifunction I/O DAQ Device USB 2.0 Screw Terminal
